Multilin 369-HI-R-M-0-0 Motor Management Relay

Multilin 369-HI-R-M-0-0 Motor Management Relay

Product Details Introduction

Multilin 369-HI-R-M-0-0 is an advanced motor management relay in the GE Multilin series, designed specifically for the protection and control of medium and high voltage motors. It provides comprehensive motor protection functions and has powerful measurement, monitoring, and communication capabilities. The following is the detailed information of the relay:

Main features:

Comprehensive motor protection function:

Overload protection: protects the motor from long-term overload effects.

Underload protection: prevents the motor from running under low load conditions.

Blockage protection: detect motor blockage and take protective measures.

Overheating protection: Monitor motor temperature to prevent overheating damage.

Unbalanced current protection: Monitor the imbalance of three-phase current in the motor.

Advanced measurement and monitoring:

Real time current and voltage monitoring: providing accurate current and voltage measurements.

Power factor measurement: helps optimize motor operating efficiency.

Event recording and fault analysis: Record and store motor operation events for easy fault analysis.

Thermal model calculation: Through thermal model calculation, protect the motor from thermal damage.

Programmable functions:

Programmable relay output and input: supports multiple logic configurations to meet different application requirements.

User defined logic control: flexible control logic programming ability.

Flexible configuration options: Adapt to different motor protection requirements.

Communication function:

Multiple communication protocols: Supports Modbus, DNP3, and other protocols for easy integration with other devices.

Ethernet support: enables remote monitoring and control.

Integrated HMI (Human Machine Interface): Convenient on-site operation and status monitoring.

Application areas:

Industrial automation:

Manufacturing: Protecting and controlling industrial motors to ensure the continuity and safety of production lines.

Mining: Protect mining equipment motors, reduce malfunctions and downtime.

Steel plant: Monitor and protect the motors of steel production equipment to ensure the stability of the production process.

Oil and gas:

Drilling platform: protect the motors of drilling equipment to ensure safe operation.

Refinery: Monitor the operating status of refining equipment motors to prevent malfunctions and shutdowns.

Water treatment facilities:

Water plants and sewage treatment plants: protect the motors of water treatment equipment to ensure the normal operation of water supply and sewage treatment systems.

power plant:

Generator protection: Monitor and protect the generator motor to ensure the reliability of the power generation system.

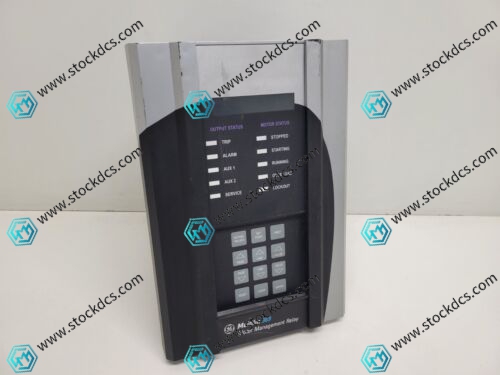

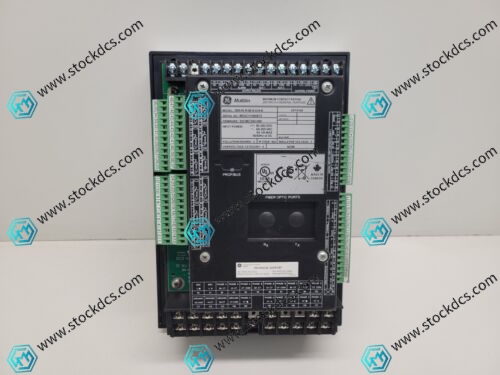

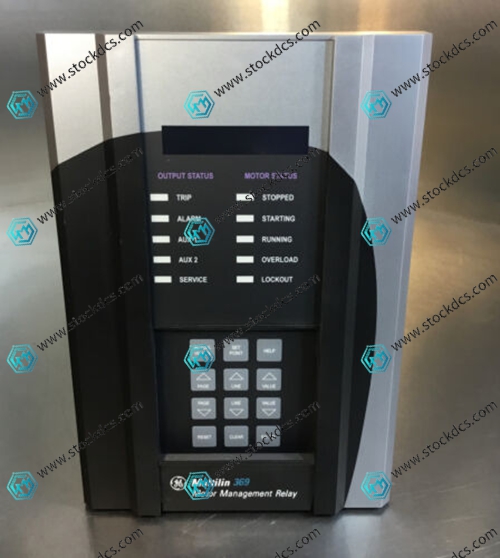

Product image
