Multilin GEH1SCAD motor management relay

Multilin GEH1SCAD motor management relay

Product Details Introduction

Multilin GEH1SCAD is a motor management relay from General Electric, belonging to the Multilin series. This relay is mainly used for motor protection and monitoring, providing various protection functions to ensure the safe operation of the motor. The following is detailed information about the GEH1SCAD motor management relay:

Main features and functions

Motor protection function:

Overload protection: Monitor the current of the motor to prevent motor damage caused by overload.

Locking protection: Monitor the current during motor start-up to prevent damage caused by motor stalling.

Phase loss protection: detects power supply phase loss or imbalance to prevent damage to the motor caused by phase loss or imbalance.

Overvoltage/undervoltage protection: protects the motor from the effects of abnormal voltage.

Short circuit protection: By detecting abnormal current, the motor is protected from short circuit damage.

Monitoring and diagnostic functions:

Real time monitoring: Real time display of the motor's operating status, including parameters such as current, voltage, and power.

Fault diagnosis: Provide detailed fault records and diagnostic information to help quickly locate and repair problems.

Data recording: Store historical data and event records for subsequent analysis and auditing.

Communication function:

Communication Protocol: Supports standard industrial communication protocols such as Modbus, DNP3, and IEC 61850, facilitating integration with higher-level control systems or remote monitoring systems.

Remote monitoring: Implementing remote access, configuration, and monitoring through communication interfaces to enhance the flexibility and convenience of the system.

User interface:

Display screen: Equipped with an LCD display screen for real-time display of motor parameters, status, and fault information.

Operating Interface: Provides a user-friendly interface for setting and adjusting protection parameters.

Application areas:

Industrial automation: Used for motor protection and control in various industrial environments to ensure reliable operation of equipment.

Power generation and distribution system: suitable for motor protection in generator sets, substations, and distribution systems.

Water treatment and pumping stations: used for motor protection in water treatment facilities and pumping stations to prevent equipment shutdown and damage caused by malfunctions.

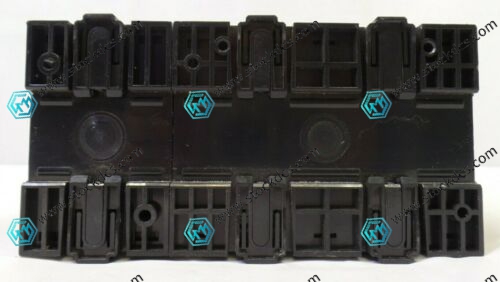

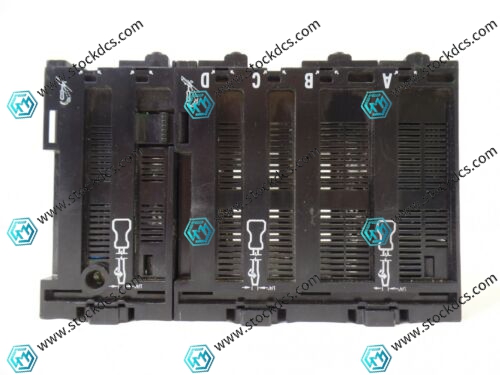

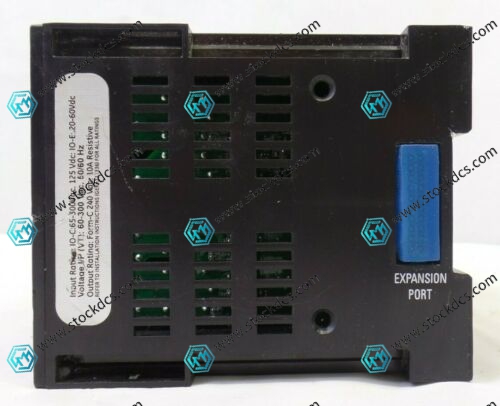

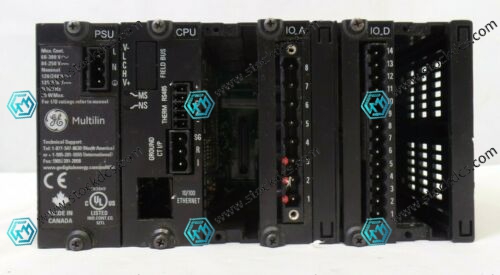

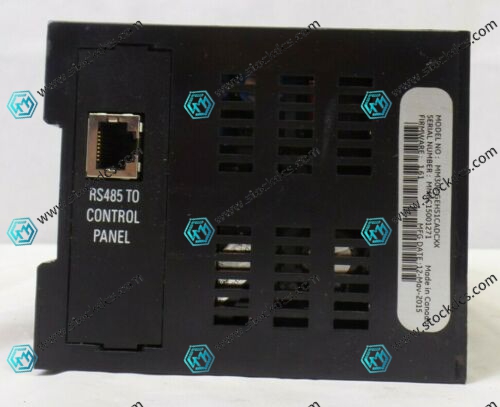

Product image
