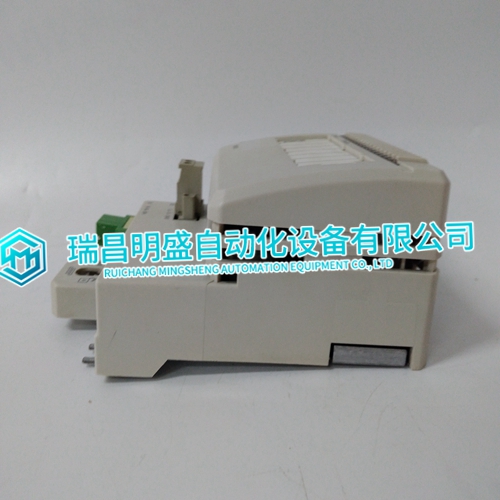

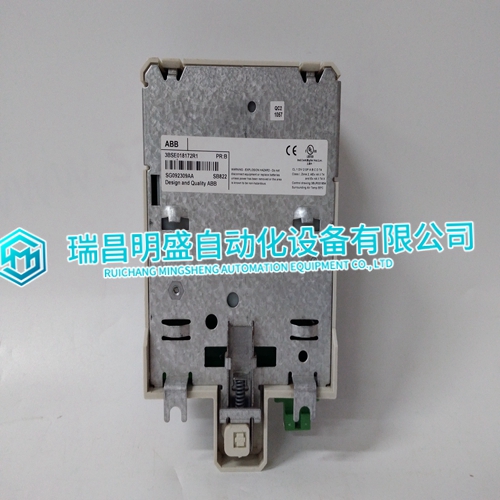

SB822 3BSE018172R1 Logic input module

Transmission Path Specifications Network Topology: Bus topology Transmission Path Redundancy: Available Transmission Speed: 128 megabits per second Transmission Cable: Dedicated cable (YCB301), an optical fiber cable (*1) Transmission Distance: Max. 10 m (*2), 50 km (when using the ANT411 Optical ESB Bus Repeater Module) (*3) *1: Optical Fiber Cable Specifications Connector Type: LC (compliant with IEC 61754-20) Recommended Cable: Quartz single-mode fiber (JIS C6835 SSMA -9.3/125 IEC 60793-2-50B1.1) Number of Cores: 2 *2: Max. 10 m for EC401 and max. 10 m on the upper and lower sides, respectively, for EC402. *3: The distance can be extended to a maximum of 50 km using the optical ESB bus repeater module. Chain and star connection configurations are available.

Transmission Path Specifications

Network Topology: Bus topology Transmission Path Redundancy: Available Transmission Speed: 10 megabits per second Transmission Cable: Coaxial cable (YCB141, YCB311). Use YCB147/YCB149 Bus Adapter Unit to connect a YCB141 cable to a YCB311 cable. One grounding unit (YCB117) per segment (*1) should be used when connecting YCB311 cable. Transmission Distance: YCB141: Max.185 m When mixing YCB141 and YCB311: Length of YCB141 + (185/500) x Length of YCB311 ≤ 185 Number of Bus Adapter Units: Max. 4 per segment (*1) General-purpose Ethernet Repeater: The total transmission distance is limited by the number of repeaters. L ≤ 4 - 0.5 × n L: total transmission distance (km) n: the number of the general-purpose Ethernet repeater (Max. 4 repeaters)

l I/O Modules

The I/O Modules include Analog I/O Modules, Digital I/O Modules and Communication Modules. There are several types of Analog I/O Modules, including the isolated channel type, isolated type and non-isolated type. In addition, to enable replacements from CENTUM V, CENTUM-XL and µXL compatible modules are provided so that the system cable from the Signal Conditioner can be connected to these compatible modules. For the I/O Modules, the environment-proof support (temperature environment support, G3 support) options can be specified. The I/O Module is Explosion Protection product. For details, refer to “Explosion Protection” (TI 33Q01J30-01E)
