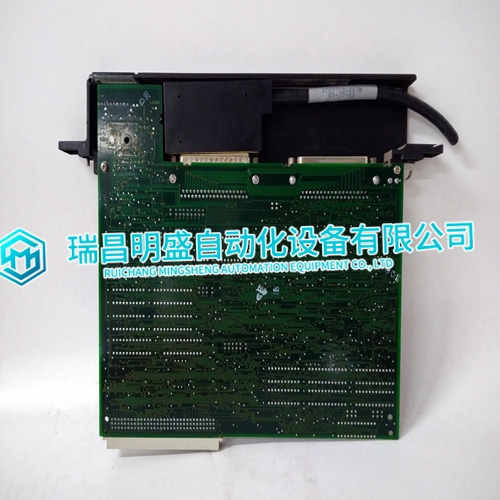

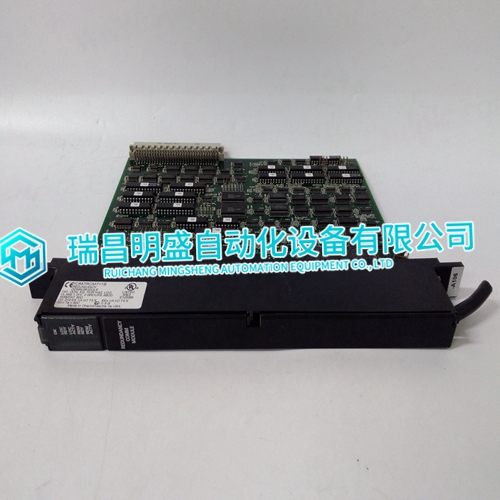

IC687RCM711B Gas turbine electrical module

Voltage Input

• Range: Wye L-N or Delta L-L

• Set for sensing/transformer used between generator and EGCP-2.

• Defines which calculations will be used for kW, kVA, kVAR, etc.

• Defines the expected input type for voltage levels in the set point menus.

 • Sets the label used for all generator and mains voltage Status readings.

• Wye (Star) Generator or Transformer Connection 4 Wire Volts Line to Neutral expected for all set point menu items requiring voltage settings.

• Delta Generator or Transformer Connection 3 Wire Volts Line to Line expected for all set point menu items requiring voltage settings.

Voltage Reference

• Range: 1—30000

• Operating Voltage of Generator per Generator Nameplate. Used for VAR/PF Sharing as the Reference that multiple generators share reactive load to. This maintains the voltage reference while in Power Factor Sharing or kVAR Control mode on an isolated bus.

Display Units

 • Range: American or Metric

 • Metric Sets temperature readings to degrees Celsius (C), and pressure to bar (BAR).

• American Sets temperature readings to degrees Fahrenheit (F), and pressure to Pounds per Square Inch (psi). Set Date

 • MM-DD-YY

 • Sets the date used by the control for Alarm / Event time stamps, and displays.
