SIEMENS 6ES5942-7UB11 CPU module

SIEMENS 6ES5942-7UB11 CPU module

Product Details Introduction

Siemens 6ES5942-7UB11 is the CPU module of Siemens S7-400 series PLC. This module is responsible for executing control programs, processing input and output data, and coordinating other modules and devices in the PLC system. The following are the key features and application instructions of this module:

Main characteristics

Processing capability: Provides high-performance processing capability to quickly execute control programs and handle complex control logic.

Memory: Equipped with large capacity program memory and data memory to support complex application requirements and large amounts of data processing.

Communication Interface: Supports multiple communication interfaces and protocols, including PROFIBUS, PROFINET, etc., for data exchange with other PLC modules and external devices.

Scalability: Designed to be compatible with other modules in the S7-400 series, supporting flexible system expansion and upgrades.

Integrated function: It has integrated diagnostic functions for monitoring system status and fault diagnosis.

application

Control system: Execute control programs in the PLC system to achieve control over production processes, machinery equipment, or other automation systems.

Data processing: Processing data from input modules, generating control instructions, and sending them to output modules.

System coordination: Coordinate the various modules and equipment in the PLC system to ensure the normal operation and data consistency of the system.

Communication management: Manage data communication with other PLC systems or external devices to ensure accurate transmission and exchange of data.

Installation and use

Installation: Install the CPU module into the PLC rack and ensure proper connection with other modules.

Configuration: Use Siemens' configuration tools (such as STEP 7 or TIA Portal) to configure the parameters of the CPU module, including control programs and communication settings.

Programming: Write and upload control programs, configure the working mode and operation logic of CPU modules.

Maintenance: Regularly check the status and performance of the module, and perform necessary maintenance and update operations.

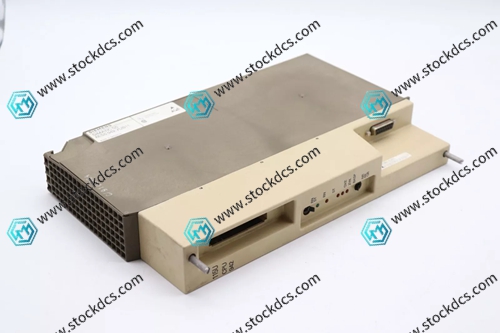

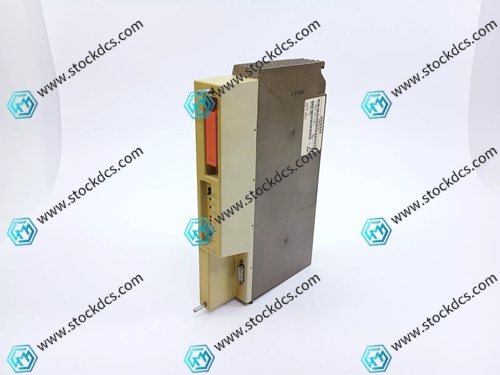

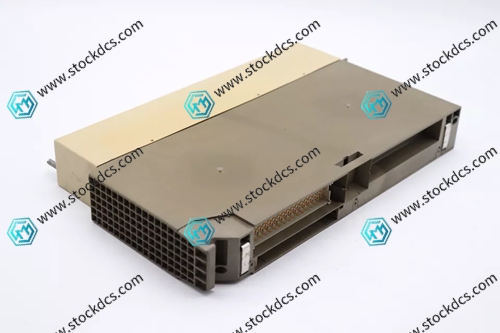

Product image
