SIEMENS 6ES5948-3UA13 Analog Input Module

SIEMENS 6ES5948-3UA13 Analog Input Module

Product Details Introduction

Siemens 6ES5948-3UA13 is an analog input module in the SIMATIC S5 series, designed to collect and process analog signals from sensors or other analog signal sources. This module can convert these analog signals into digital signals for further analysis and control by processors (such as CPU modules).

Main features:

Number of channels: This module provides multiple analog input channels for connecting various analog sensors, with typical signal types including current or voltage signals.

Signal type:

Voltage signal: usually within the standard range of 0-10V, ± 10V, etc.

Current signal: typical 4-20mA or 0-20mA range.

Resolution: The module has a high resolution and can accurately convert analog signals into digital signals, ensuring the accuracy of measurement data.

Isolation protection: Each input channel typically has an isolation protection function to prevent electrical interference or damage between input signals or with other devices.

Diagnostic function: The module supports self diagnostic function, which can detect faults or abnormal states of input signals and provide relevant error information for maintenance and troubleshooting.

Configuration flexibility: It can be configured through software to adjust the type and range of input signals, adapting to different industrial scenarios and application requirements.

Application areas:

Industrial process control: Collect analog signals of key parameters such as temperature, pressure, and flow rate, and use them for real-time monitoring and control in industrial control systems.

Automation system: widely used in production line automation equipment for sensor data acquisition and monitoring of equipment operation status.

Energy management: In energy management systems, it is used to monitor and collect key electrical parameters such as voltage and current.

Environmental monitoring: In the environmental monitoring system, analog signals such as temperature, humidity, and air pressure are collected to ensure accurate monitoring of environmental data.

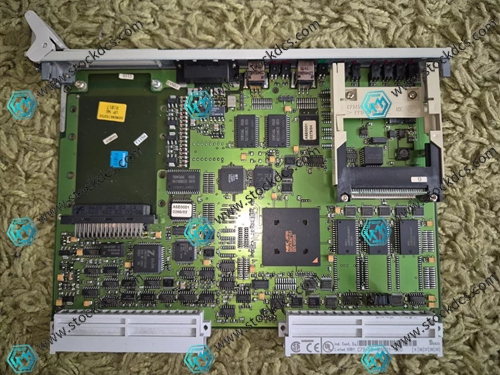

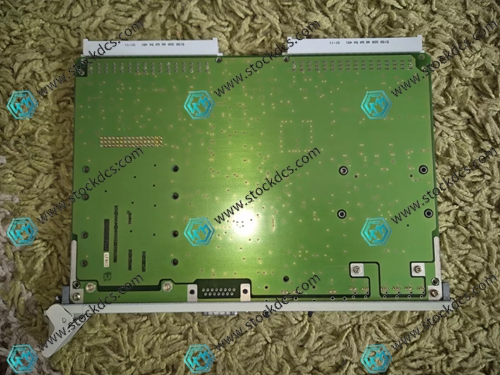

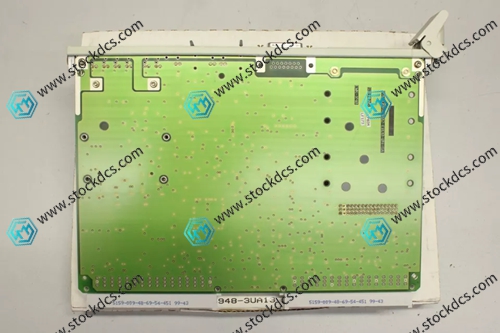

Product image
