Siemens 6ES5243-1AA12 Analog Interface Module

Siemens 6ES5243-1AA12 Analog Interface Module

Product Details Introduction

Siemens 6ES5243-1AA12 is an analog interface module of the SIMATIC S5 series, designed specifically for industrial automation control systems to interface analog signals with PLC systems. This module can process analog signals from sensors, actuators, and other devices, and convert these signals into digital signals for PLC processing, or convert PLC control signals into analog outputs.

Product specifications:

Product type: Analog interface module

Module series: SIMATIC S5 series

Input/Output Type: Analog Input/Output

Input channel: multi-channel analog input, supporting voltage or current input

Output channel: Multi channel analog output, supporting voltage or current output

Input range: 0-10V or 4-20mA (depending on the application)

Output range: 0-10V or 4-20mA (depending on the application)

Resolution: High resolution ADC/DAC conversion, providing accurate analog signal processing

Application scenarios:

Industrial process control: used to monitor and control parameters such as temperature, pressure, flow rate, liquid level, etc., and transmit analog signals to PLC systems.

Production line automation: In automated production lines, it is used to connect with analog sensors and actuators, collect data or send control signals.

Machine equipment control: Control analog signals in industrial equipment, such as regulators, drivers, or other devices that require analog control.

Energy management: Collecting and controlling energy usage data, such as voltage, current, or power signals.

characteristic:

High precision: Supports high-precision analog signal conversion to ensure the accuracy of data processing in the system.

Multi channel design: equipped with multiple input/output channels, suitable for the acquisition and control needs of various analog signals.

Flexible configuration: Supports both voltage and current signal forms to adapt to different application environments.

Easy to integrate: Fully compatible with SIMATIC S5 series PLCs, facilitating system expansion and maintenance.

Industrial grade design: suitable for harsh industrial environments, ensuring long-term stable operation.

Typical applications:

Sensor data acquisition in process automation

Analog Control of Industrial Equipment

Analog signal acquisition in power and energy management systems

Equipment regulation and control in factory automation

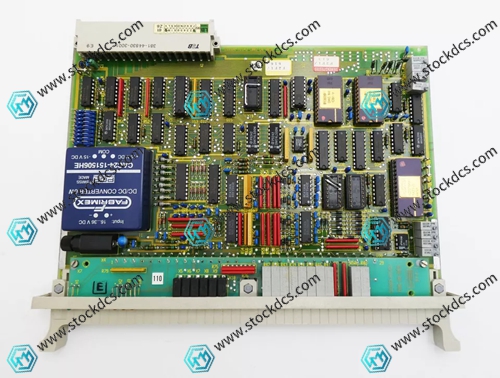

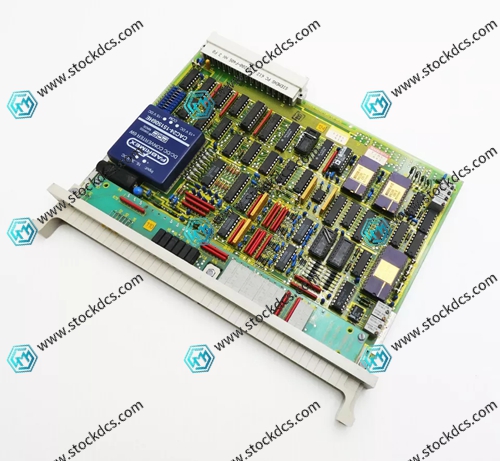

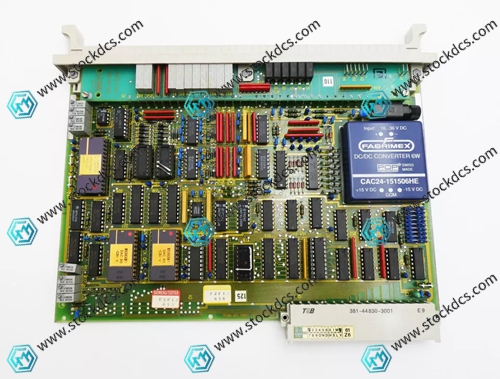

Product image
