Siemens 6ESP241-1AF12 Encoder Module

Siemens 6ESP241-1AF12 Encoder Module

Product Details Introduction

Siemens 6ESP241-1AF12 is an encoder module in the SIMATIC S5 series, used to process signal inputs for incremental or absolute encoders. It can convert the position signal or velocity signal of the encoder into a digital signal that can be processed by the PLC system, thereby achieving precise motion control and position monitoring.

Main features:

Module type: Encoder module

Series: SIMATIC S5-115U/135U/155U

Function: Process pulse signals from encoders and convert them into position, velocity, or angle data for use in PLC systems.

Supported encoder types: Supports incremental encoders and absolute encoders.

Input channel: Usually supports multi-channel input, depending on the module specifications, and can be connected to multiple encoders.

Communication interface: communicates data with the CPU module through the system bus of the PLC to ensure signal transmission and processing.

High speed counting: capable of quickly processing the pulse signal output by the encoder, suitable for high-speed applications.

Function and purpose:

Position measurement: used to receive and process pulse signals emitted by encoders to measure the precise position or angle of equipment.

Speed measurement: By reading the pulse frequency of the encoder, the motion speed of the device is calculated.

Motion control: In applications that require precise motion control, the encoder module provides necessary feedback signals to achieve closed-loop control.

Synchronous control: It can be used in multi axis synchronous control systems to achieve coordinated motion of equipment by reading signals from multiple encoders.

Application scenarios:

Automated production line: used for equipment that requires precise position and speed control, such as robots, conveyors, CNC machines, etc.

Packaging machinery: used to monitor the position and speed of materials during packaging and processing, ensuring precise production operations.

Printing machinery: Monitor the rotation speed and position of the drum in printing equipment to ensure the accuracy and synchronization of the printing process.

Mechatronics equipment: Ensuring the precision and coordination of motion between various components in complex mechanical systems.

instructions:

The Siemens 6ESP241-1AF12 encoder module is typically installed in the central rack of the S5 series, working in conjunction with other I/O modules and CPU modules. This module is directly connected to the encoder, reads the pulse signals it emits, and transmits these signals to the PLC for processing and feedback through the system bus. This module is widely used in the fields of motion control and position detection in industrial automation, especially in application scenarios that require high precision and high-speed motion control.

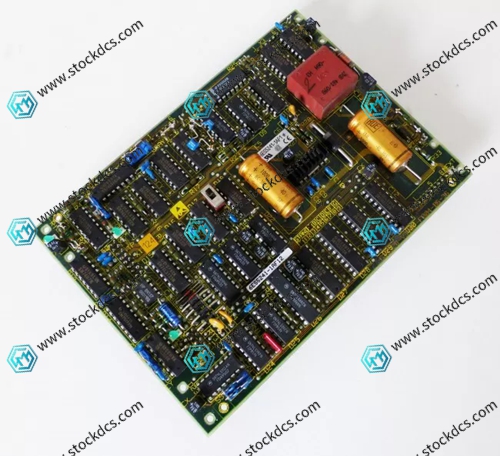

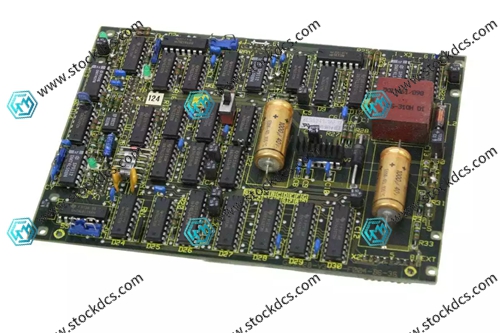

Product image
