Siemens 6ES5183-3UA22 rack

Siemens 6ES5183-3UA22 rack

Product Details Introduction

Siemens 6ES5183-3UA22 is a rack module in the SIMATIC S5 series, used for installing and connecting different modules such as central processing unit (CPU), input/output (I/O) module, and expansion module. This rack module provides physical installation locations and electrical connections for S5 series modules, and enables communication and power distribution between modules through the system backplane.

Main features:

Model: 6ES5183-3UA22

Series: SIMATIC S5 Series

Module type: Rack module

Main functions:

Module installation: Provides multiple slots for installing S5 series CPUs, I/O modules, communication modules, and other functional modules.

System Backplane: The rack is equipped with a built-in system backplane, through which modules achieve data communication and power distribution.

Modular design: allows users to flexibly install and replace modules according to system requirements.

Compact design: Suitable for control systems that require multiple modules, the design is compact to save installation space.

Compatibility: Fully compatible with various modules of the SIMATIC S5 series, including CPU, I/O modules, and communication modules.

Application scenarios:

Industrial automation system: PLC control system widely used in industrial automation systems, suitable for complex automation tasks.

Modular control system: provides a centralized installation and connection point when multiple modules need to be installed.

Expansion and Upgrade: Can be used together with expansion units to increase the capacity and functionality of the control system.

Advantages:

Strong flexibility: Supports multiple types of modules to adapt to various control requirements.

Easy to install and maintain: Modular design facilitates the installation and replacement of modules, reducing the time and cost of system maintenance.

Stability and reliability: Provide stable electrical connections and communication capabilities to ensure the long-term reliable operation of the control system.

Technical specifications:

Number of slots: 6ES5183-3UA22 provides several slots for installing different S5 series modules, depending on the rack model.

Power management: Provide stable power to installed modules through the backplane.

Communication bus: Built in backplane for high-speed data communication and power distribution between modules.

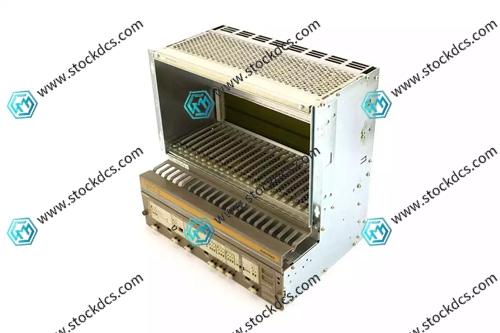

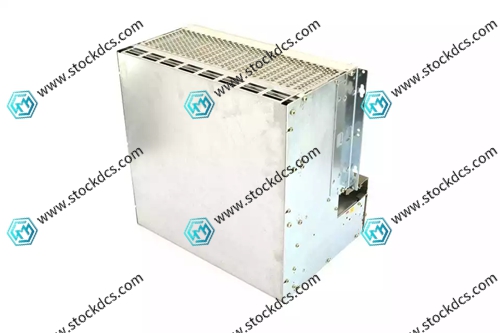

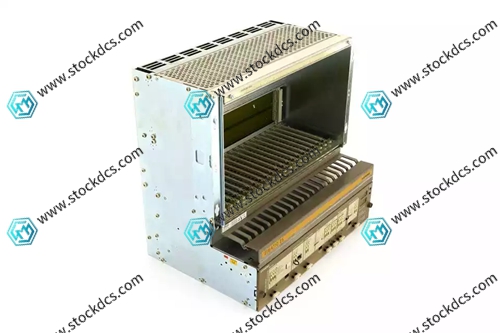

Product image
