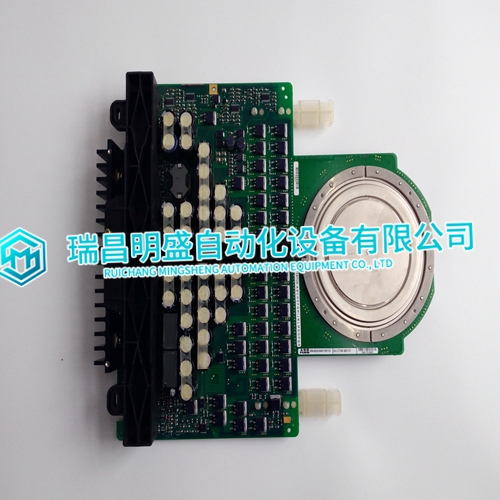

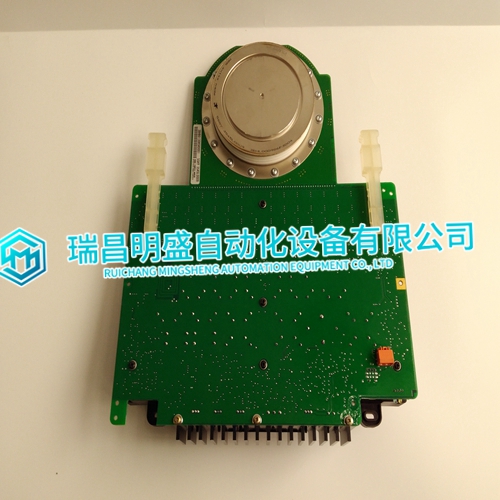

5SHY3545L0009 3BHE009681R0101 IGCT module

Risk of electric shock or equipment damage!

 ► Do not touch any live parts in the cabinet!

 ► Disconnect the power supply before making connections to or removing connections from terminals of controller or I/O modules.

► Do not reconnect the power supply until you have completed installation.

► Observe the rules regarding electrostatic discharge.

Via a LONWORKS Bus, an Excel 800 System can be connected to other controller systems, to additional LONWORKS Bus I/O modules, or to laptops.

LONWORKS Bus Termination

Depending upon the configuration, either 1 or 2 termination modules are required for terminating a LONWORKS bus with FTT devices on it. The following 2 different LONWORKS termination units are available for this purpose:

• 209541 LONWORKS Bus Termination Module and

• XAL-Term LONWORKS Connection and Termination Module, which can be mounted on DIN rails and in fuse boxes

Connecting HMIs or Laptops

HMIs, e.g., XI582 or XI882A, can be connected via the HMI interface of the XCL8010 Controller Module. Laptops can be connected via the HMI interface or via the LONWORKS interface of the XCL8010 Controller Module. Connecting the XI582 Operator Interface ► Connect the XI582 Operator Interface to the HMI interface of the XCL8010 Controller Module by means of – the XW882 cable or – the XW582 cable connected with an XW586 cable. For mounting details, refer to the XI582 Installation Instructions (Product Literature no.: EN2B-0126GE51). For cable details, refer to section "Preconfigured Connection Cables" on page 11.
