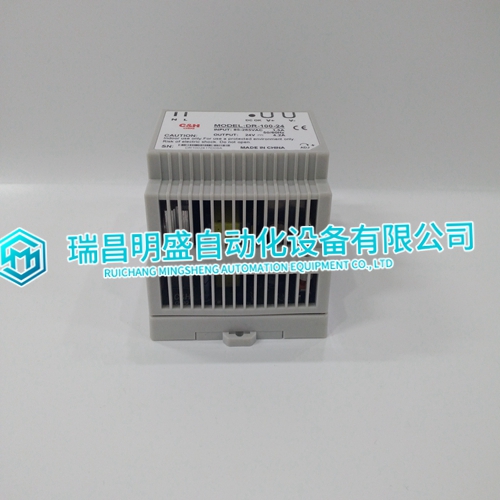

C&H DR-100-24 Switching power supply module

Transmission These variables are transmitted immediately when its value has been changed by a higher rate than the configured "send on delta" (in the case of the totalizer, “send on delta” has a default value of 5 counts). These variables are also transmitted as a heartbeat output on a regular basis as dictated by the maximum send time (nciSndHrtBt) (default = 0 = disabled) configuration variable. Default Service Type The default service type of these variables is unacknowledged.Totalizer Count – nvoDiCount[ ] This network variable output indicates the total number of transitions from 0 to 1 since the last reset due to power-up or network reset.

XFL(R)824 Relay Output Module

 One instance of the LONMARK open-loop sensor object has been assigned per input of the XFL824/XFLR824 Relay Output Module. Each output object has its own configuration properties, except for heartbeat configuration, which will be shared among all objects.Start-up Behavior At start-up, i.e., power-up or reset, all nvi's will be initialized with INVALID, leading the actuator to drive to the configured safety position after 1 minute. Receive Heartbeat The default configuration for “Receive Heartbeat” is 300 sec. If no nvi update is received during this time, the field devices will go to their configured safety positions.

Troubleshooting on the XCL8010 Controller

The following LEDs of the XCL8010 Controller can be used for troubleshooting purposes:

 • Power LED (green)

 • Alarm LED (red)

 • LONWORKS service LED

• C-Bus Tx and Rx LEDs

 • HMI Tx and Rx LEDs

• Modem Interface Tx and Rx LEDs
