Product Details Introduction

Siemens 6ES712-1BA00-0XB0 is a CPU 222 AC/DC/relay compact PLC module in the SIMATIC S7-200 series. It is designed specifically for small automation control tasks and is suitable for various industrial and commercial automation scenarios. The following is the detailed information of the compact unit:

Main technical specifications:

Type: SIMATIC S7-200 CPU 222 AC/DC/Relay

Input/output points:

8 digit inputs

6 relay outputs

Power supply voltage: AC 85-264 V, suitable for various power supply environments

Storage capacity:

Program memory: 4 KB

Data storage: 4 KB

Communication interface: RS-485 communication interface, supporting PPI (point-to-point communication) protocol, used to connect with other devices such as HMI or other PLC units.

Working temperature: 0 ° C to 55 ° C

Size: Compact design, easy to install in control cabinets with limited space.

Functional features:

Relay output: This module is equipped with 6 relay outputs, which can directly drive loads such as motors, heaters, or lights without the need for additional intermediate relays.

Multi functional counting and timing functions: Supports counters, timers, high-speed counting, and other functions, suitable for handling complex automation tasks.

Programming language: Supports programming with STEP 7-Micro/WIN software, and supports programming languages such as ladder diagram (LAD) and instruction list (IL) to simplify the development process.

Communication capability: The RS-485 communication interface can reliably communicate with other devices and systems, such as networked PLC systems or connected to human-machine interface devices.

Expansion module support: More input and output points can be added by expanding the I/O module to flexibly meet the different needs of the project.

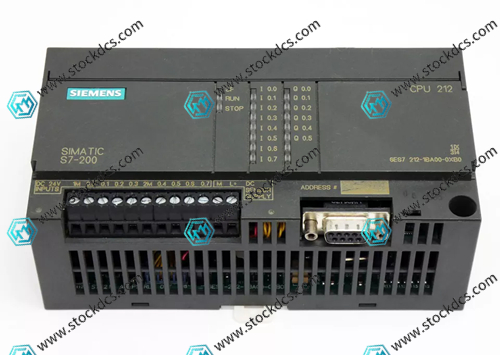

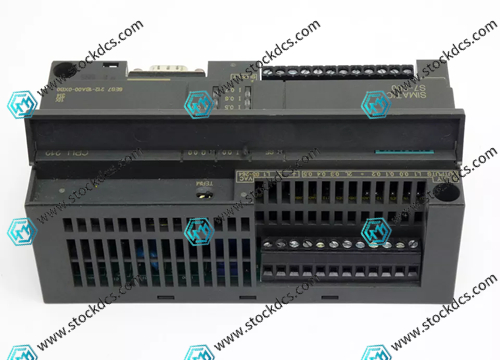

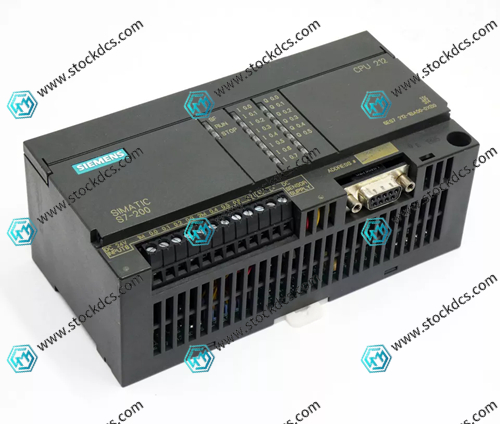

Product image
