FIREYE E1R1 flame amplifier module

FIREYE E1R1 flame amplifier module

Product Details Introduction

Introduction to Fireye E1R1 Flame Amplifier Module

1. Overview: The Fireye E1R1 flame amplifier module is part of the Fireye combustion management system, designed to detect and amplify signals from flame detectors to ensure safe operation of the burner. It is often used in conjunction with ultraviolet (UV) and infrared (IR) flame detectors and is widely used in flame monitoring systems for industrial boilers, burners, and furnaces. This module enhances the flame signal to provide reliable flame presence detection for the combustion controller, effectively preventing faults such as flame loss in the burner.

2. Main functions

Flame signal amplification: E1R1 amplifies the weak flame signal received from the flame detector to ensure that the combustion system can quickly and accurately detect the flame state.

Flame detection: Real time monitoring of flame signals during the combustion process. When the flame abnormality disappears, a signal is immediately sent to the controller to trigger the burner protection mechanism.

Compatible with multiple flame detectors: compatible with Fireye series UV and IR flame detectors, able to adapt to different combustion application scenarios.

Flame signal intensity indication: Through the built-in flame intensity indication function, it helps users understand the flame status in order to adjust and maintain the burner.

System integration: This module can be easily integrated into the Fireye combustion control system, working in conjunction with the burner control module to achieve efficient flame detection and safety monitoring.

3. Technical features

High precision signal amplification: amplifies the signal from the flame detector to ensure accurate detection of the combustion control system even at low flame intensities.

Fast response speed: The response to flame changes is extremely fast, ensuring that the system can be shut down in a timely manner when the flame disappears, preventing safety accidents.

Strong reliability: Industrial grade design, capable of long-term stable operation in harsh environments.

Strong compatibility with detectors: It can be used in conjunction with various flame detectors in the Fireye series, such as UV1A, 48PT2, etc.

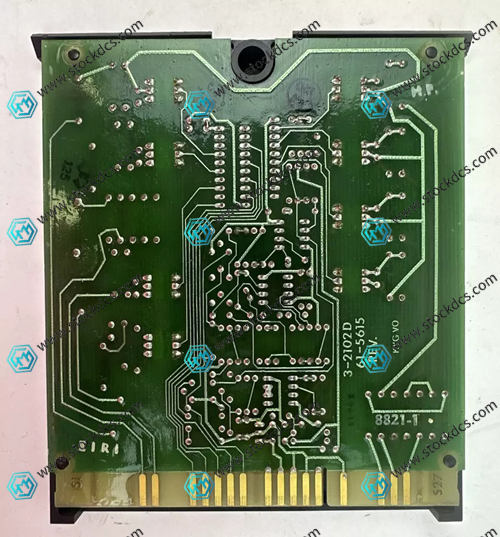

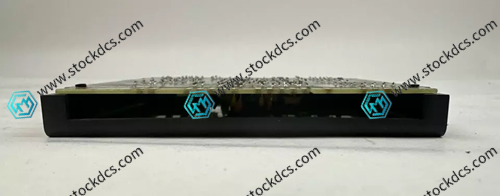

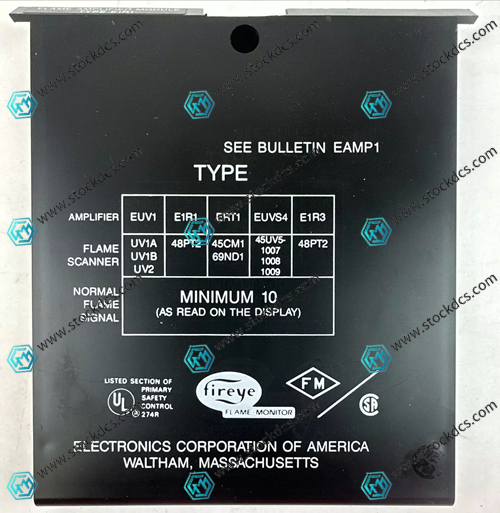

Product image
