Honeywell 51204156-175 Digital Output Module

Honeywell 51204156-175 Digital Output Module

Product Details Introduction

Introduction to Honeywell 51204156-175 Digital Output Module

1. Overview Honeywell 51204156-175 digital output module is a high-performance module designed specifically for industrial automation systems, typically used for integration with control systems or distributed control systems (DCS). It can convert digital signals from the controller into switch signals for external devices, which are used to control the operation of devices such as solenoid valves, relays, indicator lights, and other switch devices.

2. Main functions

Digital signal output: Send the digital signal generated by the controller to external devices for controlling the operating status of switch devices (such as on/off operations).

High speed response: This module has the ability to respond quickly and accurately execute switch instructions in a short period of time, ensuring real-time control of industrial equipment.

Multi channel output: The module supports multiple digital output channels, allowing for simultaneous control of multiple devices or execution of multiple operations.

High reliability: Adopting industrial grade design, it can operate stably in harsh working environments and has strong anti-interference ability.

3. Technical features

Multi channel configuration: Supports up to 16 or more digital output channels, depending on the specific model.

Output signal type: usually a switch signal (on/off), used to control the on/off operation of external devices.

Insulation protection: Each channel has electrical isolation to prevent interference between signals and ensure the safety and reliability of the system.

LED indicator light: Each output channel is equipped with an indicator light for real-time display of channel status (such as the on/off status of the output channel).

4. Technical specifications

Model: 51204156-175

Output channels: typically 16 or more (depending on the specific model)

Output voltage: 24V DC (common), also supports other voltage ranges (depending on the specific model)

Current capacity: Typical value is 0.5A or higher per channel

Isolation voltage: Each channel has high voltage isolation (usually above 1500V AC) between them

Response time: Typical response time is less than 1ms

Operating temperature range: -40 ° C to+70 ° C, suitable for harsh industrial environments

Size: Standard size, easy to install in the control system rack

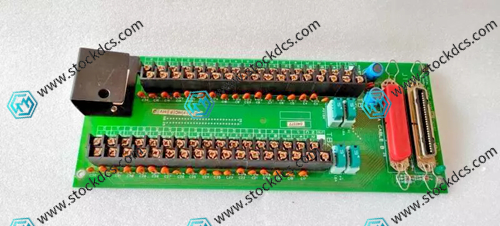

Product image
