Siemens 6ES7235-0KD00-0XA0 Analysis of I/O Module

Siemens 6ES7235-0KD00-0XA0 Analysis of I/O Module

Product Details Introduction

Siemens 6ES7235-0KD000-0XA0 is an analytical I/O module belonging to the S7-1200 series, mainly used for signal processing and data acquisition in industrial automation systems. The following are the main features and functions of this module:

Input channel:

Provide 4 analog input channels and support multiple signal types, including current (such as 4-20mA) and voltage (such as 0-10V).

Each channel can be independently configured and is suitable for connecting various sensors and actuators.

Processing ability:

The module has high resolution, usually 16 bits, to ensure accurate data acquisition.

Built in signal processing function, capable of linearization and filtering, optimizing signal quality.

Output channel:

Equipped with 2 analog output channels, it can be used to control devices such as regulating valves and frequency converters.

Communication function:

Supports PROFINET and other industrial communication protocols for easy integration with Siemens PLCs and other devices.

Installation and Connection:

Adopting standard terminal block design for easy wiring and maintenance.

It can be connected to the S7-1200 controller through a backplane and supports DIN rail installation.

Application areas:

Suitable for multiple industries such as manufacturing, process control, and building automation, especially in situations where data monitoring and signal processing are required.

Programming and Configuration:

Configure and program through TIA Portal software, supporting user-defined logic and control functions.

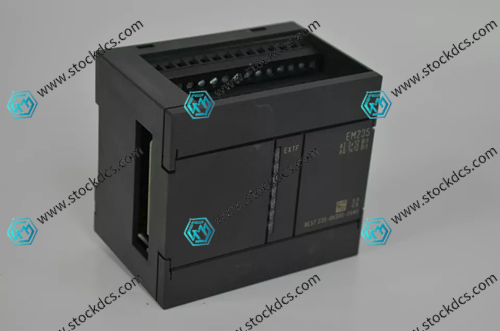

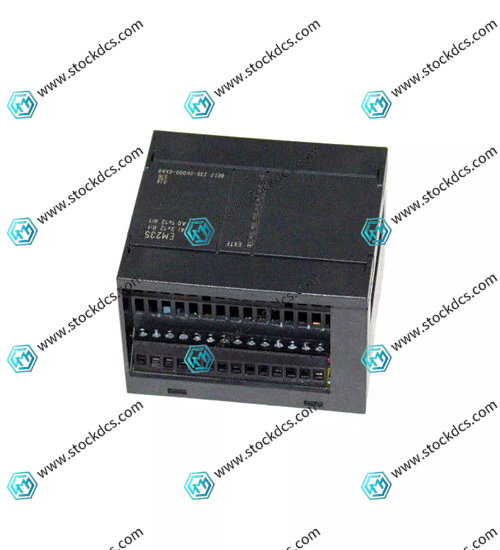

Product image
