Siemens 6ES7314-5AE02-0AB0 Compact CPU Module

Siemens 6ES7314-5AE02-0AB0 Compact CPU Module

Product Details Introduction

Siemens 6ES7314-5AE02-0AB0 is a compact CPU module, model number CPU 314C-2. This module is designed for industrial automation applications in the S7-300 series and is particularly suitable for environments with limited space. The following are its main features and technical specifications:

Main features:

Processing ability:

Based on a 32-bit RISC architecture, it provides efficient data processing capabilities, suitable for complex control and real-time applications.

Memory configuration:

Built in 512 KB RAM for storing user programs and data, suitable for medium-sized application needs.

Support external memory expansion for handling more complex control logic.

Input/Output Expansion:

It can connect up to 32 I/O modules and flexibly respond to various automation needs.

Communication interface:

Integrate MPI and PROFIBUS communication interfaces, support efficient data exchange with other devices, and enhance the system's integration capabilities.

Compact design:

Compact design is suitable for installation in limited space, saving rack space.

Diagnostic function:

Built in fault detection and monitoring functions, real-time monitoring of system status for quick maintenance and troubleshooting.

Programming environment:

Programming is done through Siemens STEP 7 software, which supports multiple programming languages (such as ladder diagrams, functional block diagrams, etc.) for easy development and debugging.

Application areas:

Industrial automation: widely used in production line control, process monitoring, equipment control and other fields.

Installation and configuration:

Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.

Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

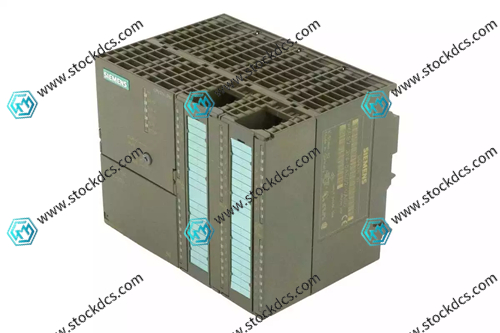

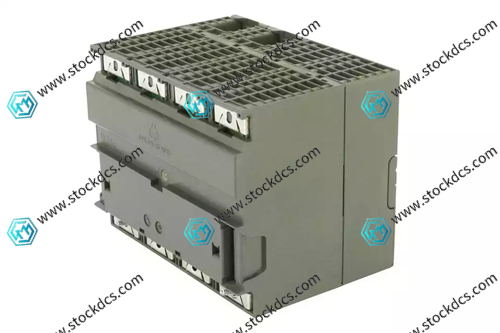

Product image
