Siemens 6ES7322-1HF10-0AA0 is a relay output module designed specifically for S7-300 series PLC systems. This module provides multiple relay outputs and can control various loads, including high voltage and high current devices, suitable for applications such as industrial automation, building automation, and process control.

Main technical specifications:

Number of output channels: 16 relay outputs

Output type: normally open (NO) relay contact

Output voltage: maximum 250V AC or 30V DC

Maximum output current: 5A per channel

Switching capacity:

AC load maximum 1250 VA

DC load maximum 150 W

Protection level: IP20 (suitable for installation inside control cabinets)

Electrical isolation: There is electrical isolation between the output and the backplane bus (usually 500V AC)

Functional features:

16 relay outputs: Provides 16 independent relay output channels, suitable for controlling multiple high-power devices.

High load capacity: suitable for controlling various motors, solenoid valves, lamps and other equipment, with strong load capacity.

Short circuit protection: It has a short circuit protection function and can automatically cut off the power supply in case of a fault, protecting the module and load.

LED status indicator light: Each output channel is equipped with LED indicator lights, which display the output status in real time for easy debugging and maintenance.

High reliability: The module design has good anti-interference ability and is suitable for harsh industrial environments.

Application scenarios:

Factory automation: Control large equipment such as motors and sensors to achieve industrial automation.

Process control: Control production equipment in industries such as chemical, pharmaceutical, and food processing to ensure stable production processes.

Building automation: used in building management systems to control lighting, air conditioning, heating and other facilities, improving energy efficiency.

Mechanical manufacturing: Implementing multi-point control in automated machinery to ensure that equipment operates according to predetermined procedures.

Summary:

The Siemens 6ES7322-1HF10-0AA0 relay output module is a powerful 16 channel output module designed specifically for applications that require control of high-power loads. Its high load capacity, short-circuit protection, and electrical isolation ensure its reliability and stability in various industrial automation and process control environments.

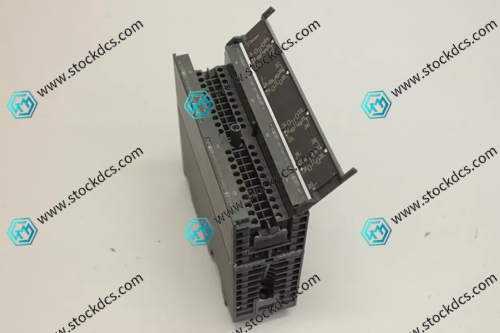

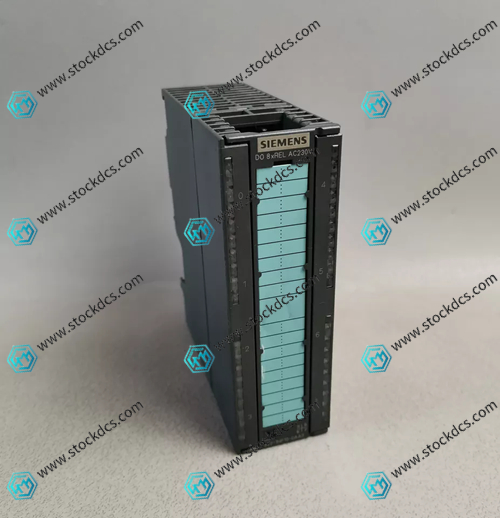

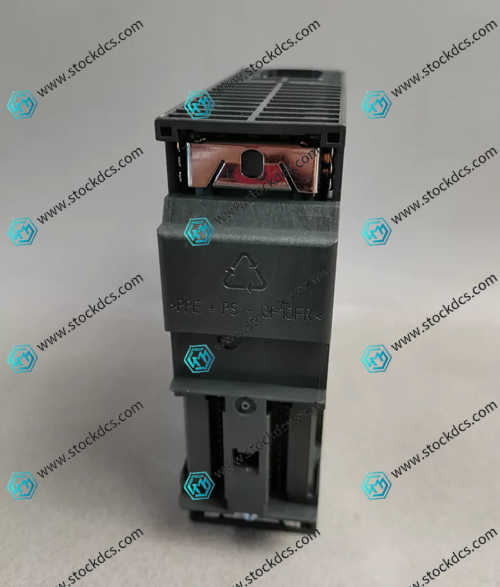

Product image
