Siemens 6ES7322-1HH00-0AA0 Controller Module

Siemens 6ES7322-1HH00-0AA0 Controller Module

Product Details Introduction

Siemens 6ES7322-1HH00-0AA0 is a digital output module designed specifically for S7-300 series PLC systems, providing flexible control options and widely used in industrial automation, process control, and equipment monitoring fields.

Main technical specifications:

Number of output channels: 16 digital outputs

Output voltage: 24V DC

Maximum output current: 0.5 A per channel

Total output current: Maximum 8 A (when all channels are used together)

Protection level: IP20 (suitable for installation inside control cabinets)

Electrical isolation: There is electrical isolation (usually 500V AC) between the output signal and the backplane bus

Functional features:

High density output: 16 digital outputs, suitable for controlling various low-voltage devices such as solenoid valves, relays, and indicator lights, saving space and costs.

Short circuit protection: Built in short circuit protection function, which can automatically cut off the power supply when a channel fails, protecting the module and load.

LED status indicator light: Each output channel is equipped with an LED indicator light, which displays the output status in real time for easy monitoring and troubleshooting.

Electrical isolation: The electrical isolation design between the output channel and the controller backplane ensures the safety and stability of the system, and reduces the risk of interference.

High reliability: The module design is suitable for harsh environmental conditions and has high anti-interference ability and reliability.

Application scenarios:

Factory automation: Control equipment such as motors, sensors, relays, etc. to achieve automated operations.

Process control: Control various equipment in industries such as chemical, pharmaceutical, and food processing to ensure stable production processes.

Building automation: controlling lighting, air conditioning, heating and other facilities to improve the efficiency and energy utilization of building management.

Mechanical manufacturing: used to control actuators in automated machinery to achieve precise operations.

Summary:

The Siemens 6ES7322-1HH00-0AA0 digital output module is a powerful 16 channel digital output module suitable for various industrial automation and process control applications. Its high-density output, short-circuit protection, and electrical isolation design features enable it to provide reliable output control in various application scenarios, ensuring the stable operation of the system.

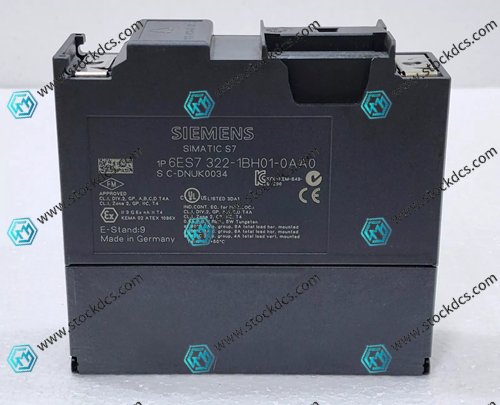

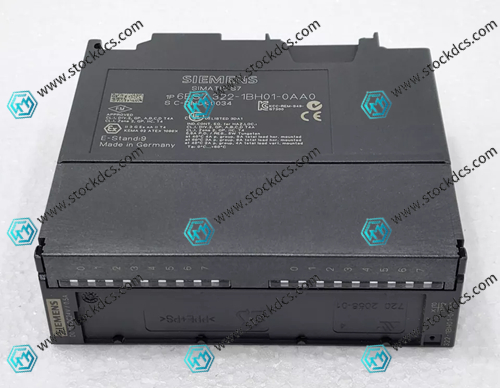

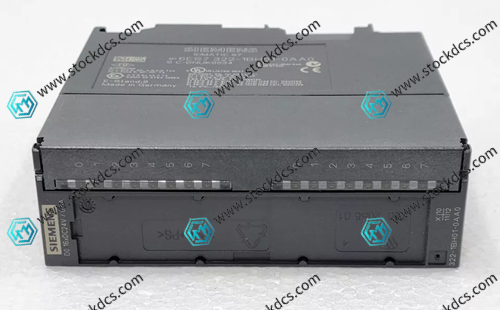

Product image
