Siemens 6ES7326-2BF01-0AB0 Digital Output Module

Siemens 6ES7326-2BF01-0AB0 Digital Output Module

Product Details Introduction

Siemens 6ES7326-2BF01-0AB0 is a digital output module in the S7-300 series, used to control the switch signal output of external devices. This module is commonly used in industrial automation scenarios, interacting with field devices such as solenoid valves, relays, lights, and other control devices through digital outputs.

Main technical specifications:

Module type: Digital output module

Number of output channels: 16 output channels

Output type: 24V DC output

Output voltage range: 20.4V to 28.8V DC

Maximum output current: 0.5 A per output channel, total current not exceeding 4 A

Short circuit protection: equipped with short circuit protection to prevent damage caused by load faults

Overload protection: equipped with overload protection for each channel to ensure stable operation of the equipment

Output status indication: Each output channel is equipped with LED indicator lights to display the current output status

Response time: Typical response time is 0.1 ms

Diagnostic function: supports diagnostic function and can detect fault status (such as short circuit, overload, etc.)

Connection method: Use a 40 pin front connector for cable connection

Isolation voltage: The electrical isolation voltage between the module and the backplane bus is 500V AC, ensuring the electrical safety of the system

Power consumption: Low power design

Size: 125 mm x 40 mm x 120 mm (height x width x depth)

Main features:

High reliability: Each output channel is equipped with short-circuit and overload protection, which enhances the safety and service life of the module.

Fast response: The output response time is 0.1 ms, suitable for applications that require high precision and fast response.

Modular design: seamlessly integrated with other modules in the Siemens S7-300 series, allowing for flexible expansion of system functionality.

Status indication: Each output channel has LED indicator lights for real-time viewing of the channel's working status.

Diagnostic capability: Supports real-time monitoring of the operating status of each channel, providing detailed fault information for quick maintenance and troubleshooting.

Application areas:

Factory automation: used to control equipment on the production line, such as starting/stopping devices or controlling output signals of motors, valves, lights, etc.

Process control: Implementing control over actuators or other devices in a process control system.

Machine manufacturing: suitable for signal output control of various industrial machinery, such as control relays, heaters, etc.

Building automation: used for equipment control in building management systems, such as lighting, air conditioning systems, etc.

Summary:

The Siemens 6ES7326-2BF01-0AB0 digital output module has efficient signal output capability, powerful protection function, and fast response speed, making it very suitable for equipment control in the field of industrial automation. The high reliability and diagnostic capabilities of the module help ensure system stability and reduce maintenance costs.

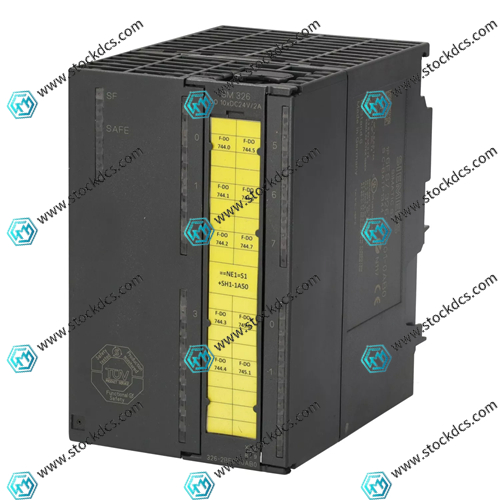

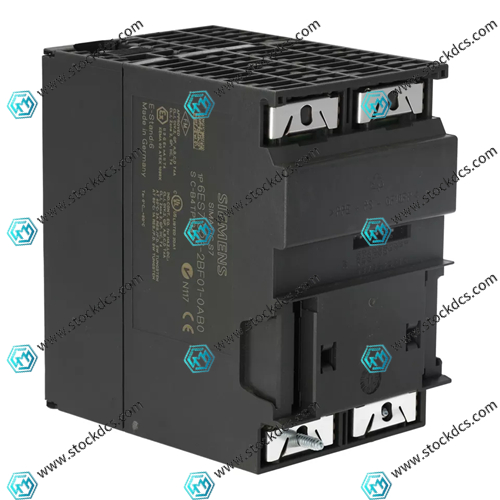

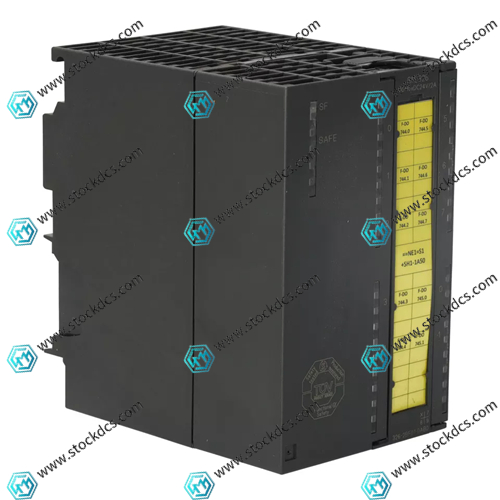

Product image
