Siemens 6ES7332-7ND01-0AB0 Analysis Output Module

Siemens 6ES7332-7ND01-0AB0 Analysis Output Module

Product Details Introduction

Siemens 6ES7332-7ND01-0AB0 is an analog output module in the SIMATIC S7-300 series, belonging to the SM 332 module series. This module is used to convert the digital signals of the controller into analog signals for controlling external devices such as valves, frequency converters, actuators, etc. It is widely used in the fields of process control and automation.

Main features:

Output channel: Provides 4 analog output channels, supporting simultaneous output of multiple analog signals.

Signal type:

Voltage output: 0-10V

Current output: 0-20mA, 4-20mA

Resolution: The module has a 13 bit resolution and provides high-precision analog signal output.

Electrical isolation: There is electrical isolation between channels and between channels and systems, enhancing the anti-interference performance of the system.

Diagnostic function: supports module status and error diagnosis, such as short circuit, open circuit, etc., for timely troubleshooting.

Load protection: Provides overload protection to prevent equipment damage caused by excessive current.

Technical parameters:

Product Code: 6ES7332-7ND01-0AB0

Number of output channels: 4 analog outputs

Output signal type:

Voltage output: 0-10V

Current output: 0-20mA, 4-20mA

Resolution: 13 bits, ensuring signal accuracy

Load impedance:

Voltage output: ≥ 1 k Ω

Current output: ≤ 500 Ω

Accuracy: ± 0.3% of full scale

Isolation voltage: Each channel is electrically isolated from the system to prevent mutual interference

Power supply voltage: 24V DC

Interface type: 40 pin connector

Installation method: DIN rail installation, suitable for S7-300 system

Application scenarios:

This module is commonly used in automation systems that require precise analog signal output, such as:

Process control: used to control devices such as regulators and valves, and regulate process variables such as temperature and pressure.

Manufacturing industry: applied to automated production lines for precise control of servo motors or actuators.

Energy management: In complex energy systems, providing accurate analog signal output ensures efficient utilization of energy.

Advantages:

Multi channel design: supports multi device control to enhance system flexibility.

Electrical isolation: enhances the anti-interference performance of the system, suitable for complex industrial environments.

Diagnostic function: Help users quickly identify and solve problems, and improve system efficiency.

Accurate output: 13 bit resolution provides high-precision analog signals for the system, meeting the requirements of precision control.

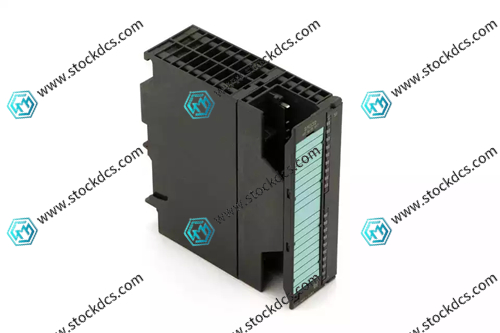

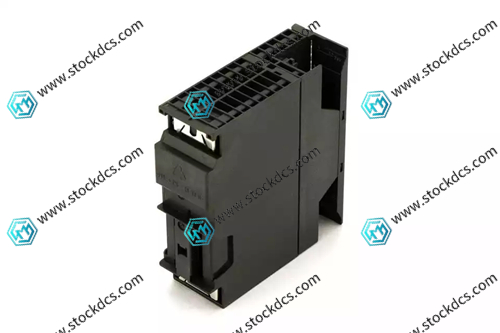

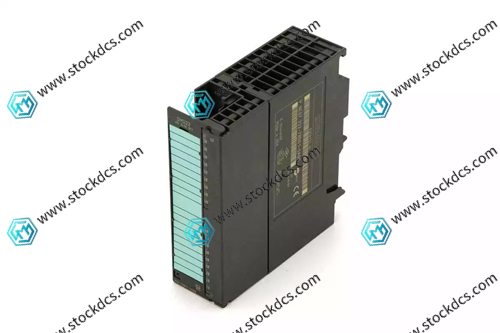

Product image
