TERASAKI ESM-103J Starter Module

TERASAKI ESM-103J Starter Module

Product Details Introduction

The Terasaki ESM-103J starter module is a modular device for motor starting and protection in industrial equipment, widely used in motor control centers (MCC), distribution systems, and other scenarios that require motor start stop control and overload protection. As part of the Terasaki series, this module is renowned for its reliability and efficient performance.

Product Overview

Model: ESM-103J

Brand: Terasaki

Type: Starter Module

Main functions: motor start and stop control, overload protection, short circuit protection, and operation status monitoring.

main features

Efficient start-up and control:

Provide reliable control for motor starting, running, and stopping.

Support direct startup or soft startup through other components.

Comprehensive protection function:

Overload protection: Monitor the operating current of the motor to avoid overload damage.

Short circuit protection: Quickly detect and isolate short circuit faults.

Voltage protection: prevent voltage fluctuations from damaging the motor.

Modular design:

Compact structure, can be flexibly integrated into electrical control cabinets or distribution systems.

Supports hot swapping, easy maintenance, and reduces downtime.

Status indication and diagnosis:

Equipped with LED or digital display screen, real-time display of motor operation status and fault information.

Support remote monitoring and control.

High reliability:

The design complies with industrial environmental standards and has the ability to resist vibration and electromagnetic interference.

Long working life, suitable for high-frequency start-up and operation scenarios.

technical parameter

Power supply voltage: AC 380V/400V, 50/60Hz

Rated current: Suitable for small and medium-sized motors, the specific current range needs to be confirmed according to the configuration.

Startup mode: Supports direct startup, soft startup needs to be used in conjunction with relevant modules.

Protection function:

Overload protection range: 1-10 times rated current (adjustable).

Short circuit protection triggering time:<10ms.

Control interface: Control can be achieved through digital or analog signal interfaces.

Working temperature range: -10 ° C to 50 ° C

Installation method: Standard rail or panel installation

Application scenarios

Industrial motor control:

Start stop control and protection of various pumps, fans, and compressors.

Production line automation:

Used as a motor control unit in assembly lines or equipment.

Building Management System:

Manage the operation of motors in HVAC systems.

Power distribution system:

As a component of MCC, it centrally manages multiple motors.

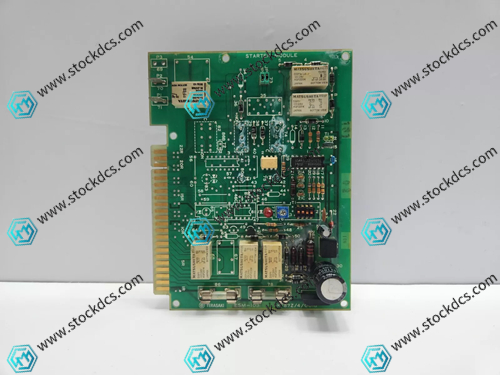

Product image
