YPI105C Digital Input Circuit Board

YPI105C Digital Input Circuit Board

Product Details Introduction

Main functions and features:

Multi channel digital input:

Provide multiple digital input channels and support parallel processing.

Can connect various types of switches, sensors, or other digital devices.

Signal compatibility:

Supports multiple input signal standards (such as 24V DC or 48V DC).

Provide electrical isolation function to avoid signal interference and equipment damage.

High reliability:

Designed to adapt to harsh industrial environments and possess excellent anti-interference capabilities.

Compliant with EMC (electromagnetic compatibility) and industry standards.

Fault diagnosis:

Built in diagnostic function, real-time monitoring of channel status.

Support detecting input signal faults (such as short circuits or open circuits).

Modular design:

Easy to install, maintain, and replace.

Seamless integration with ABB control systems, suitable for various control architectures.

Technical specifications:

Parameter details

The number of input channels is usually 16 channels or higher

Input voltage range 24V DC or 48V DC

The typical value of input current is a few milliamps

Isolation between signal isolation channels, up to a maximum of 500V

Response time<10 milliseconds

Working temperature range -20 ° C to+70 ° C

Installation method: DIN rail or rack mounted installation

Size standard module size

Application areas:

Industrial automation: used for PLC systems to receive switch signals from on-site equipment, such as buttons, limit switches, etc.

Process control: Monitor and collect process signals, applied in industries such as petroleum, chemical, and power.

Energy management: Used for digital signal input in power generation and transmission control systems.

Intelligent manufacturing: integrated into the production line for high-precision signal acquisition and control.

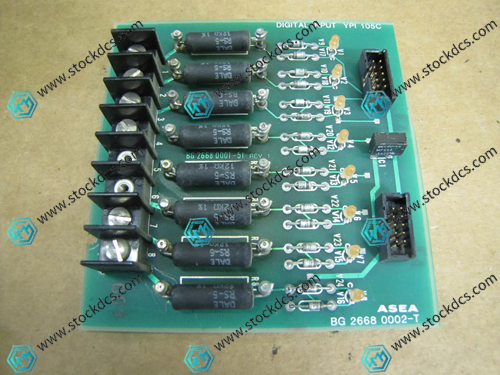

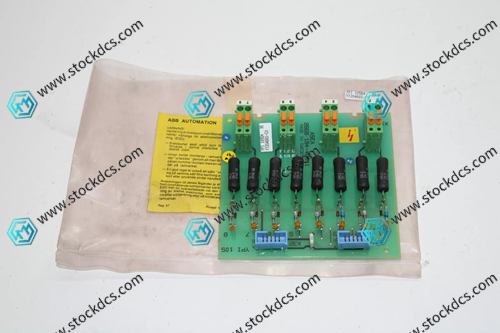

Product image
