YPO104 Digital Output Board

YPO104 Digital Output Board

Product Details Introduction

Main functions and features

Multi channel digital output

Provide multiple independent digital output channels and support simultaneous control of multiple external devices.

Each channel can be operated independently, with high flexibility.

Signal driven capability

Supports multiple output voltage levels (such as 24V DC).

Can drive relays, solenoid valves, and other digital input devices.

High reliability design

The output channel has overload protection function, effectively avoiding equipment damage.

Equipped with status indicator lights to display the working status of each channel.

Isolation protection

Channel to channel and ground electrical isolation enhance the system's anti-interference ability.

Ensure stable operation in harsh industrial environments.

Diagnostic function

Support channel level fault detection, such as short circuit and overcurrent alarms.

Provide real-time monitoring to improve maintenance efficiency.

technical specifications

Parameter details

Number of output channels: 16 channels or higher

Output voltage range 24V DC (typical value)

The maximum output current per channel is 500 mA (depending on the specific model)

Isolation voltage channel and channel/ground 500V

Response time<5 milliseconds

Working temperature range -20 ° C to+70 ° C

Installation method: DIN rail or rack mounted installation

Size standard module size

application area

industrial automation

Used to control actuators, alarms, and other digital devices on the production line.

process control

The switch equipment in the drive control system is suitable for scenarios such as petrochemicals and power plants.

Building automation

Control lighting, access control, and security equipment.

Intelligent Manufacturing

Integrated into the control system of the production line to achieve high-precision digital signal output.

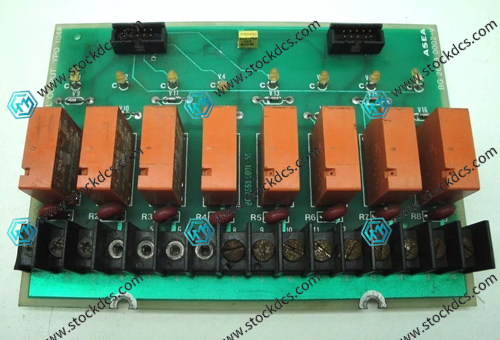

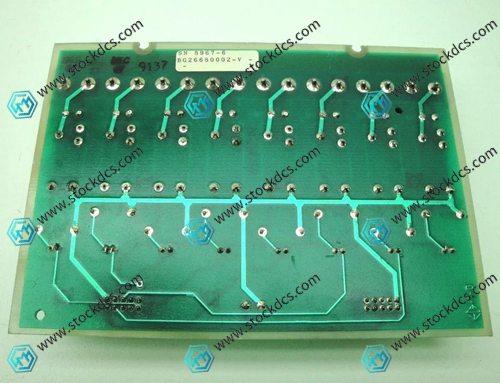

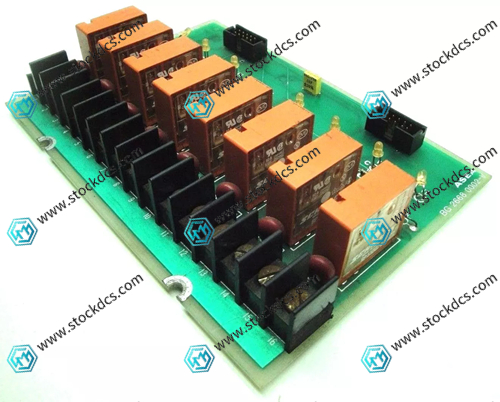

Product image
