WATLOW ANAFAZE CLS204 Temperature Controller

WATLOW ANAFAZE CLS204 Temperature Controller

Product Details Introduction

Main functions and features

Multi channel temperature control

Supports up to 4 independent control loops, suitable for complex multi zone temperature management needs.

Each channel can be independently programmed to meet different temperature requirements.

High precision control

Provide PID control algorithm, support automatic adjustment function, and achieve high-precision temperature control.

Fast response speed and minimal temperature fluctuations.

Flexible input types

Supports multiple sensor inputs, including thermocouples (T/C) and RTDs.

Compatible with multiple sensor types, making it easy to integrate with existing systems.

User friendly interface

Equipped with a digital display screen, it can display the current temperature and set value in real time.

Simple and easy-to-use menu navigation for quick setup and adjustment.

Communication capability

Supports RS-232 or RS-485 communication protocols and can be integrated with PLC or upper computer systems.

Provide remote monitoring and data recording functions.

Alarm and safety functions

Support high and low temperature alarms to ensure the safe operation of the system.

Configurable relay output for alarm or emergency shutdown.

technical specifications

Parameter details

Control circuit quantity: 4 independent circuits

Control method PID, self-tuning control

Input type thermocouple (J, K, T, E) and RTD (Pt100)

Output type SSR driver, relay, linear voltage/current output

Communication interface RS-232 or RS-485

Power requirement 85-264 VAC, 50/60 Hz

Working temperature range: 0 ° C to+50 ° C

Installation method: Panel installation

Size 1/4 DIN or other standard sizes

application area

industrial process control

Multi zone heating equipment control, such as plastic molding, heat treatment, and coating processes.

Laboratory and R&D

Multi point temperature monitoring and adjustment, suitable for precision testing equipment.

Food and Beverage

Used for controlling baking, fermentation, and temperature sensitive processes.

Semiconductor Manufacturing

Precise temperature control is a manufacturing process that has a critical impact on production yield.

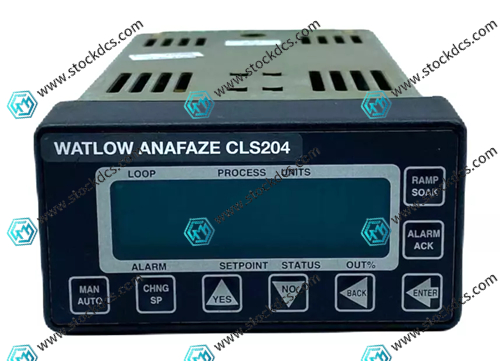

Product image
