WOODWARD 8280-423 Digital Control Module

WOODWARD 8280-423 Digital Control Module

Product Details Introduction

WOODWARD 8280-423 digital control module is a widely used digital control module in engine control, turbine control, generator set control, and other industrial automation systems. It is a part of Woodward's production, mainly used for precise control of the operation of engines, turbines, and other mechanical equipment, ensuring their efficient and stable operation under predetermined working conditions.

Main features and functions:

Digital control:

The 8280-423 module provides precise digital control, capable of processing various input signals, performing real-time control, and adjusting output devices according to preset control strategies. It supports modern digital control technology, with high response speed and control accuracy.

Multiple input and output support:

This module supports multiple types of inputs and outputs, such as analog inputs (4-20 mA, 0-10 V), switch inputs, digital inputs, etc. For output, it usually supports digital signals, analog signals (4-20 mA or 0-10V), and relay controlled outputs. Modules can be flexibly configured according to application scenarios.

High performance processing capability:

The 8280-423 module has powerful processing capabilities, capable of real-time processing of large amounts of data and signals, and adjusting the operating parameters of output devices based on control algorithms. It is very suitable for applications that require high real-time and high-precision control, such as generator control, wind power control, and other industrial process control systems.

Communication interface:

The Woodward 8280-423 digital control module is equipped with multiple industrial communication interfaces, such as Modbus, Ethernet, CANopen and other standard protocols, to facilitate communication and data exchange with other devices (such as PLC, HMI, SCADA systems, etc.).

Self diagnostic function:

The module has built-in self diagnostic function, which can monitor its own working status in real time, including power supply, electrical faults, signal abnormalities, etc., and notify users in a timely manner through alarms. This makes system maintenance easier and minimizes downtime due to malfunctions.

High reliability and anti-interference ability:

Due to its typical application in industrial environments, the Woodward 8280-423 control module is designed with strong anti-interference capabilities and can operate stably in environments with high noise and temperature fluctuations.

Flexible parameter configuration and adjustment:

Users can configure and adjust parameters through HMI (Human Machine Interface) or software tools on the computer to ensure that the module meets the specific application requirements. It is usually equipped with an easy-to-use interface, making installation, configuration, and debugging easier.

Application areas:

Generator control:

8280-423 is widely used in the control system of generator sets, which can accurately control the operation of the generator, ensuring its stability and efficiency. It can adjust the output voltage, frequency, power and other parameters of the generator, and make real-time responses to load changes.

Engine control:

In the engine control system, Woodward 8280-423 serves as a key component that can control important parameters such as fuel injection, ignition timing, and air-fuel ratio to ensure optimal performance of the engine under different operating conditions.

Turbine control:

For gas or steam turbines, the 8280-423 module can precisely control the speed, load, and other key performance indicators of the turbine. It can make real-time adjustments based on input sensor data to ensure efficient and stable operation of the turbine.

Wind power generation:

In wind power generation systems, the 8280-423 control module is used to optimize the operation of wind turbines, adjust blade angles, wind speed monitoring, etc., and maximize power generation efficiency.

Industrial process control:

This module can be applied to multiple industrial automation fields, such as chemical, petroleum, power, mining, etc., to monitor and adjust the real-time operation status of equipment in process control.

Ships and marine equipment:

In ships and marine equipment, 8280-423 is used to control main engines, auxiliary engines, pumps, valves, and other equipment to ensure efficient operation of the equipment and safe and stable systems.

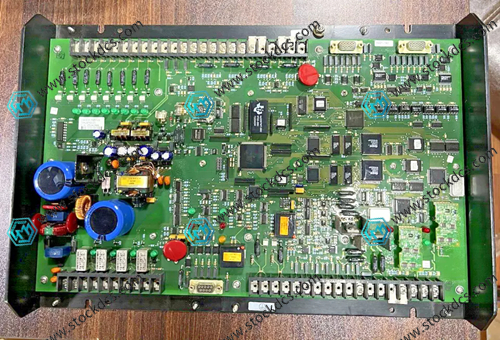

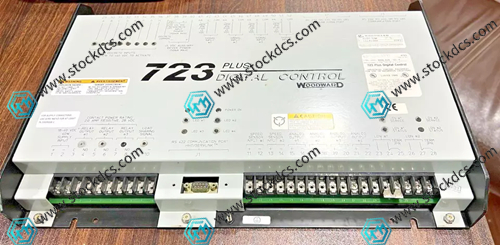

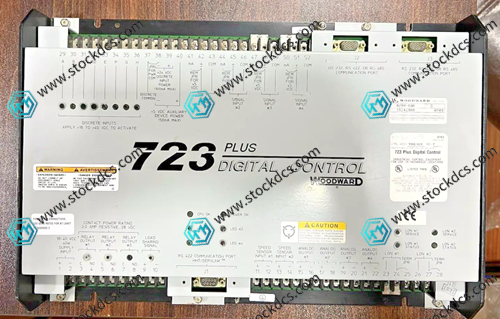

Product image
