DEIF CSQ-3 multifunctional synchronizer

DEIF CSQ-3 multifunctional synchronizer

Product Details Introduction

The DEIF CSQ-3 multifunctional synchronizer is an advanced device designed for high-precision synchronization operations in power systems, ensuring safe and reliable synchronization between generators and the grid or other generators. It is widely used in scenarios that require precise grid connection, such as the power, shipping, oil and gas industries.

main features

Synchronous measurement function

Real time monitoring and display of parameters such as voltage, frequency, phase angle, etc.

Provide synchronization instructions to help users quickly determine whether the device has reached the synchronization conditions.

Automatic and manual synchronization

Support automatic synchronization mode to reduce operational complexity.

Provide manual operation function to meet special application requirements.

Flexible configuration

Support synchronous operation of single or multiple generators.

Adjustable synchronization range and parameters to meet different system requirements.

Compact design

Integrating multiple functions into one reduces the need for additional devices.

The shell is sturdy and durable, suitable for harsh industrial environments.

Communication capability

Equipped with digital communication interfaces (such as Modbus or CAN bus) for easy integration with other control systems.

Support remote monitoring and parameter adjustment.

technical specifications

Input voltage range:

100-450V AC

Frequency range:

45-65 Hz

Phase angle accuracy:

±1°

Display:

High brightness LED display screen, visually displaying key synchronization parameters.

Working temperature:

-20 ° C to+70 ° C

Installation method:

Panel installation, compact size, compatible with multiple installation standards.

Protection level:

IP52 (front panel), IP20 (back panel).

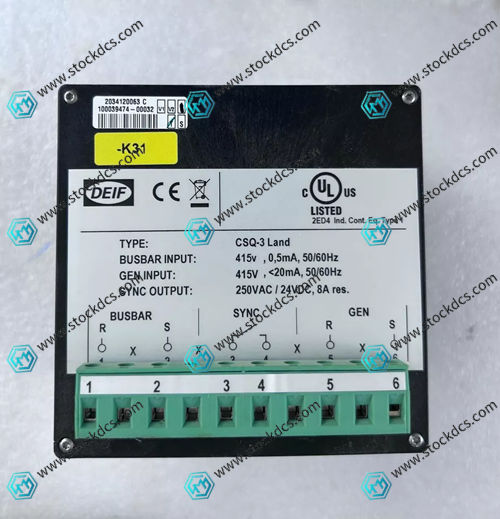

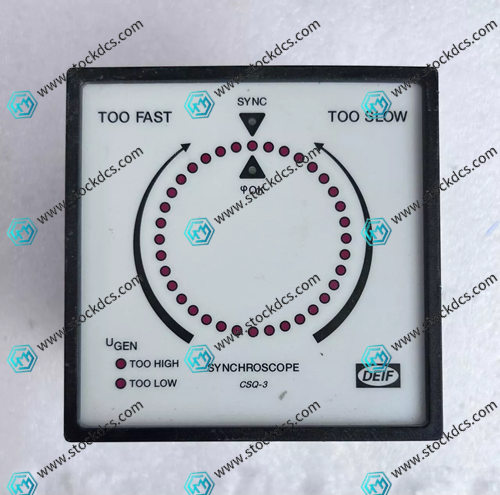

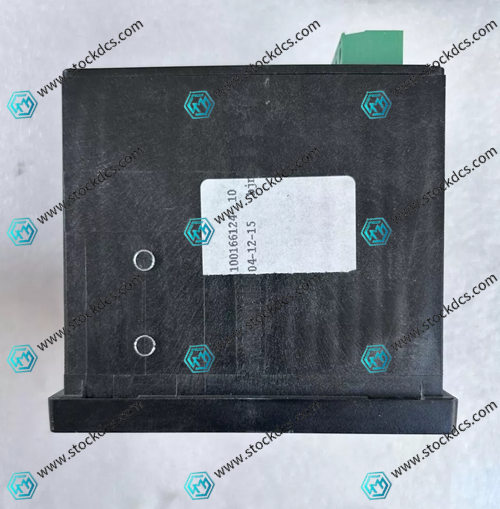

Product image
