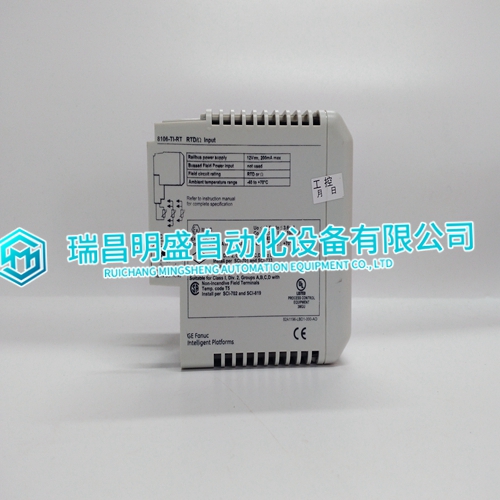

8106-TI-RT Gas turbine module

Service and Maintenance • Only qualified personnel should carry out repairs.

 • The agreed warranty applies.

• Before carrying out any cleaning or maintenance operations, disconnect the equipment from the electrical supply.

• Clean the display and surrounding front cover with a soft cloth and mild detergent.

• Replacing the battery incorrectly may result in explosion. Only use batteries recommended by the supplier.

Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage.Place the panel cut out where the operator panel is to be situated, draw along the outer sides of the holes and cut according to the markings. If access to the text strip is needed, add extra space in the lower left corner.

Dismantling and Scrapping

 • The operator panel or parts thereof shall be recycled according to local regulations.

 • The following components contain substances that might be hazardous to health and the environment: lithium battery, electrolytic capacitor and display

Ensure that the operator panel and the controller system have the same electrical grounding (reference voltage level), otherwise errors in communication may occur.Use an M5 screw and a grounding conductor (as short as possible) with a cross-section of minimum 2.5 mm2.The operator panel must be brought to ambient temperature before it is started up. If condensation forms, ensure that the operator panel is dry before connecting it to the power outlet. - Ensure that the voltage and polarity of the power source is correct.

Mode Switches

 All mode switches must be in OFF position during operator panel use. The mode switches should not be touched unless by qualified personnel. The operator panel has four mode switches (DIP switches) located on the back of the operator panel.

Enter the desired mode in the following steps:

1. Disconnect power from the operator panel.

 2. Set the mode switches.

 3. Reconnect power to the operator panel.
