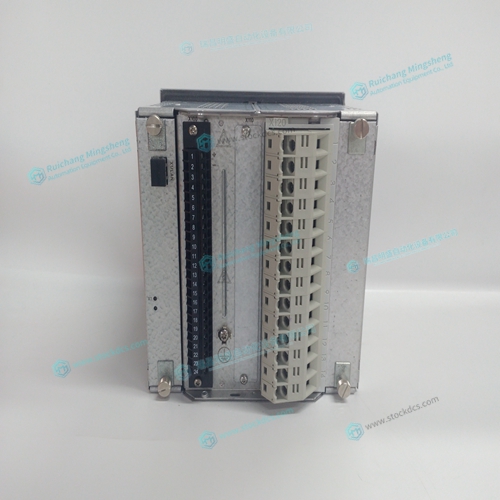

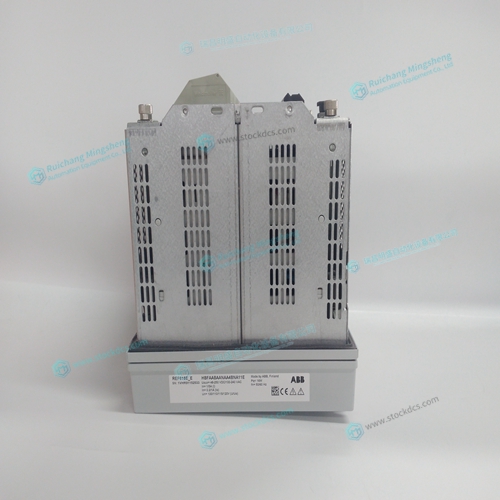

ABB REF615E-E HBFAABAANAA4BNA11E Operation panel

REF615E-E is a perfectly matched dedicated power relay for the protection, control, metering, and supervision of public substations and industrial electrical systems. ABB's Relion ® 19 inch rack mounting for relays; The REF615 adopts the same shape and fit as the DPU2000R relay, and provides the same rear terminals as the wires, making the REF615R an ideal solution for upgrading to the latest industry technology. The 615 series is a completely new design designed to fully utilize the full potential of the IEC 61850 standard in substation automation equipment communication and interoperability, while providing Modbus and DNP in standard configurations.

Range

The overhead line, feeder cable, and bus system protecting the distribution substation is designed for upgrading the DPU2000R and installed in a 19 inch rack.

Product Advantages

Maximize the use of capital by allowing assets to run longer through designs that require less equipment and space.

Improve security by reducing risk through security centric design.

Maintain critical operations with consistent, high-quality power every moment of the day, improving reliability.

Reduce operational costs through effective energy management and maintenance strategies

Upgrade your system more smoothly without rewiring or changing components.

Save installation time

Product Features

Stamping design

Underground and overhead cable fault detection (CFD)

High impedance fault detection (HIZ)

Arc Flash Detection (AFD)

Terminal blocks for all inputs and outputs

Large, easy to read LCD display
