IC3600EPSA1A frequency converter board

IC3600EPSA1A frequency converter board

Product Details Introduction

GE IC3600EPSA1A is a frequency converter module belonging to GE's Speedtronic control system series, designed for turbine control and other industrial automation applications. The following is detailed information about the IC3600EPSA1A inverter board:

Product Features

Core functions:

Realize voltage or frequency regulation for controlling motor speed and output power.

Supports variable frequency drive for AC motors, suitable for various industrial applications.

Design features:

Modular design, compatible with the standard framework of GE Speedtronic system.

Onboard various electronic components, including power transistors, capacitors, resistors, and transformers, to achieve efficient frequency conversion.

Integrated control circuit ensures the stability and accuracy of frequency regulation.

Interface and Connection:

Standardized multi pin pin design for quick installation and replacement.

Provide input ports to receive control signals, and output ports to drive loads.

Reliability:

Industrial grade design, suitable for harsh environments such as high temperature, high humidity, and vibration.

Equipped with overload protection and short circuit protection functions to enhance system safety.

technical specifications

Input voltage: typically 24V or 48V DC (matching system configuration).

Output characteristics:

Adjustable output frequency range: 0 Hz to 400 Hz.

Maximum output current: customized according to specific applications and system requirements.

Control type:

Support PWM (Pulse Width Modulation) technology to achieve efficient frequency control.

Work environment:

Temperature range:- 20 ° C to+70 ° C.

Humidity range: 0% -95% (without condensation).

Size and weight:

Compliant with the standard modular dimensions of the Speedtronic system.

Lightweight and easy to install and maintain.

application area

Industrial automation:

Control the speed and direction of AC motors for equipment such as conveyor belts, pumps, fans, etc.

Turbine control:

As a turbine auxiliary equipment, regulate the operating parameters of motors and other driving devices.

Energy and Power Systems:

In power generation and distribution systems, it is used to optimize equipment operating efficiency.

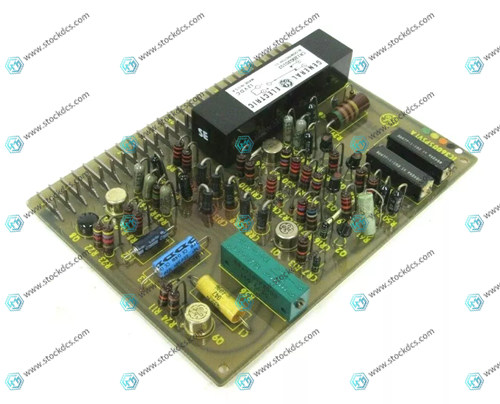

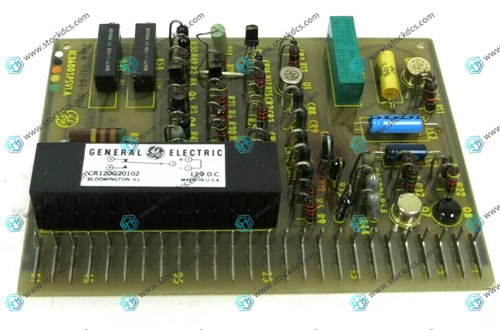

Product imag
