IC3600SOSF1 oscilloscope card

IC3600SOSF1 oscilloscope card

Product Details Introduction

The GE IC3600SOSF1 oscilloscope card is a specialized module in General Electric's (GE) Speedtronic series industrial control systems, designed for signal analysis, waveform capture, and system performance monitoring. The core function of this module is to provide real-time signal display and diagnostic functions, and it is a key debugging and monitoring tool in the turbine control system.

Product Overview

model: IC3600SOSF1

Type: Oscilloscope card module

Main purpose:

Capture and display electrical signal waveforms.

Diagnose signal issues in industrial control systems.

Provide real-time data analysis support.

Technical features

Real time signal capture:

Capable of capturing high-speed dynamic signals, suitable for complex industrial control scenarios.

Provide high-resolution waveform display function.

Multi channel support:

Equipped with multiple signal input channels, capable of monitoring multiple signal sources simultaneously.

Support mixed processing of analog and digital signals.

Modular design:

Easy to integrate into GE's Speedtronic Mark series control system.

Adopting standard interfaces to ensure compatibility with other modules.

Industrial grade reliability:

Anti electromagnetic interference (EMI) design ensures signal integrity.

Suitable for harsh industrial environments such as high temperature and high humidity.

Diagnostic function:

Realize rapid fault location of control systems.

Provide historical records of waveform data for in-depth analysis of problems

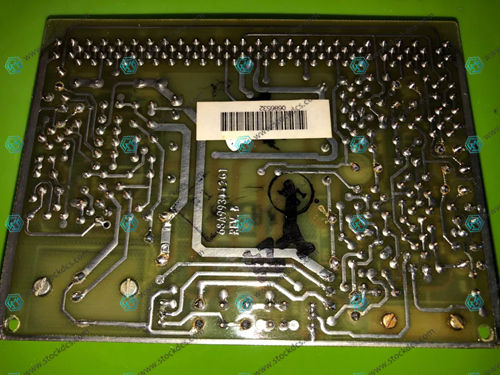

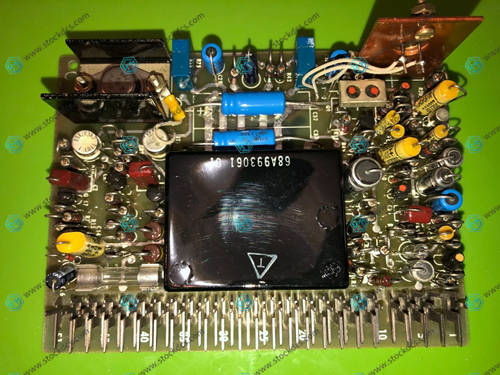

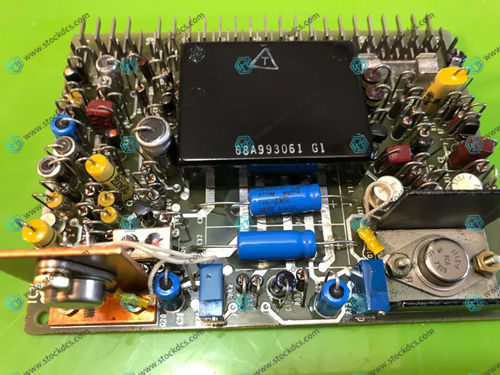

Product imag
