IC3600AOACIF circuit board

IC3600AOACIF circuit board

Product Details Introduction

The IC3600AOACIF circuit board is one of the components in the General Electric (GE) Mark series control system, which may be used for signal processing and control functions in gas or steam turbine control systems. These types of circuit boards typically perform analog output functions, used to convert digital signals within the system into analog signals for control devices such as actuators or valves.

Function and Features

Analog output:

This circuit board converts digital signals into analog signals for controlling external devices.

Supports multiple analog channel outputs, typically used for executing precision control.

Modular design:

Compatible with other Mark series modules, easy to install and replace.

High reliability:

Industrial grade design, suitable for harsh environments such as high temperature, high humidity, and vibration.

Signal amplification and isolation:

Contains signal amplification circuit to ensure output signal strength.

The electrical isolation function reduces interference and improves system stability.

Protection function:

It has overload protection, overheating protection, and short circuit protection functions to ensure system safety.

Technical specifications (which may include the following)

Output characteristics:

Output signal type: Analog voltage or current (such as 4-20mA, 0-10V).

Number of channels: Supports multi-channel output.

Power supply requirements:

Input voltage: usually 5V or 24V DC.

Interface type:

Standardized slot interface, seamlessly connected to the host system.

Work environment:

Working temperature:- 40 ° C to+70 ° C.

Humidity range: 5% -95% (without condensation).

Physical dimensions:

Compliant with GE Mark series rack installation standards.

application area

Turbine control system:

Used for controlling gas or steam turbines, regulating valves, actuators, and other equipment.

Industrial automation:

Control the pumps, valves, and other executing equipment in the factory.

Energy industry:

Used for precise control in environments such as power plants and petrochemical facilities.

Other control systems:

Suitable for other industrial control systems that require analog signal control.

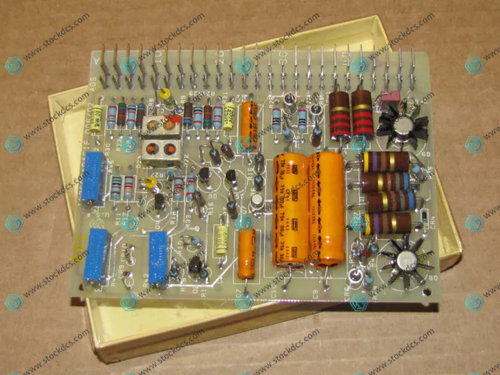

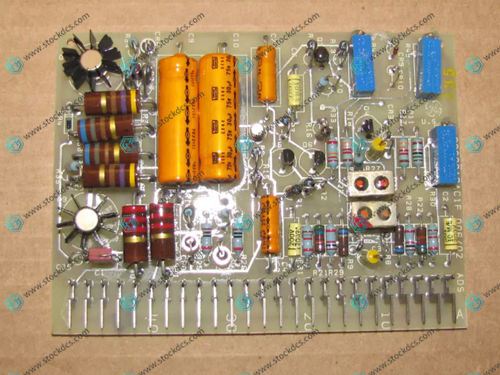

Product imag
