IC3600EPSS1B power supply board

IC3600EPSS1B power supply board

Product Details Introduction

The IC3600EPSS1B power supply board is an important component of the General Electric (GE) Mark series control system, primarily used to provide stable power support for electronic modules and other components within the system. This power supply board can convert input AC or DC power into various voltages required by the system (such as 5V, 12V, 24V, etc.), ensuring that the system can obtain sufficient and stable power during operation.

Function and Features

Power conversion and stabilization:

Convert alternating current (AC) or direct current (DC) power to a DC voltage suitable for other components of the system.

Built in voltage regulator module ensures that the output voltage remains within a stable range, avoiding voltage fluctuations from affecting the equipment.

Multiple output channels:

Provide multiple voltage output channels (such as 5V, 12V, 24V DC) to meet the power requirements of different modules or devices.

Overload protection:

It has overload, overvoltage, short circuit and other protection mechanisms to ensure that the system will not be damaged due to power issues.

High efficiency and reliability:

Designed for long-term operation, with high efficiency and reliability, suitable for various harsh industrial environments.

Thermal management design:

Equipped with heat dissipation design to ensure that the power board will not overheat under long-term high load operation, avoiding system failures caused by high temperature.

technical specifications

Input voltage:

The input voltage range may be 110V-240V AC or 24V DC (depending on the specific model).

Provide multiple input ports for easy access to different types of power sources.

Output voltage:

The output voltage usually includes common 5V, 12V, 24V DC, etc., ensuring compatibility with multiple devices.

Power capacity:

The output power generally ranges from several hundred watts to kilowatts, meeting the power requirements of multiple modules in the system.

Protection function:

Overload protection: When the load exceeds the maximum load of the power board, it automatically disconnects or limits the current.

Short circuit protection: Protect the power board from damage caused by short circuits.

Temperature protection: Monitor the temperature of the power board to avoid overheating faults.

Work environment:

Working temperature range:- 40 ° C to+70 ° C (specific models vary).

Humidity: 5% -95% without condensation.

Interface and Connection:

Power boards are usually equipped with standard electrical interfaces that are easy to connect with other modules or control units.

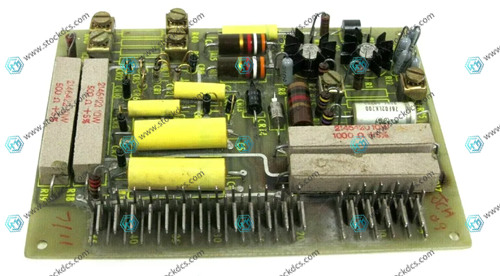

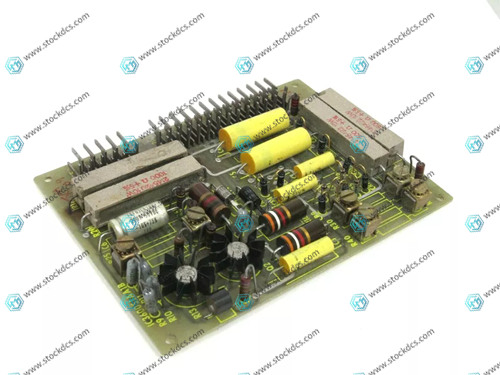

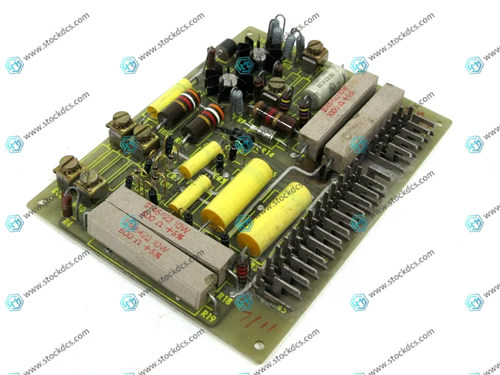

Product imag
