Bently 3500/34 125966-01 Relay Module

Bently 3500/34 125966-01 Relay Module

Product Details Introduction

The Bently Nevada 3500/34 125966-01 relay module is an important component of the 3500 series mechanical protection and condition monitoring system. This module provides efficient alarm and shutdown functions, responding to trigger signals from other monitoring modules through its relay outputs to protect the safe operation of critical equipment.

Product Features

Multi channel relay output

Equipped with 4 independent relay channels, supporting flexible configuration and independent operation.

It can be set for alarm or shutdown purposes according to system requirements.

Flexible alarm logic

Support users to customize alarm logic through 3500 configuration software, including Alert and Danger conditions.

Can be used in conjunction with multiple monitoring modules, such as vibration, temperature, position, etc.

High reliability design

Industrial grade standards, suitable for harsh environmental conditions.

Support redundant configuration to ensure system continuity and high availability.

Status display

Equipped with LED indicator lights to display the operating status of each channel for quick diagnosis and maintenance.

Modular architecture

Plug in module design, easy to install and replace.

Fully compatible with the 3500 framework, suitable for various system expansion needs.

technical specifications

Relay channels: 4 independent channels

Relay contact type:

Single Knife Double Throw (SPDT)

Normally open (NO) and normally closed (NC) contact configuration

Contact rating:

Maximum current: 5A

Maximum voltage: 250VAC or 30VDC

Power supply: Powered by a 3500 frame

Working temperature:- 30 ° C to+65 ° C

Storage temperature:- 40 ° C to+85 ° C

Humidity range: 5% to 95% (without condensation)

Installation method: Plug in, compatible with 3500 frame slots

Size and weight: Complies with 3500 series module standards

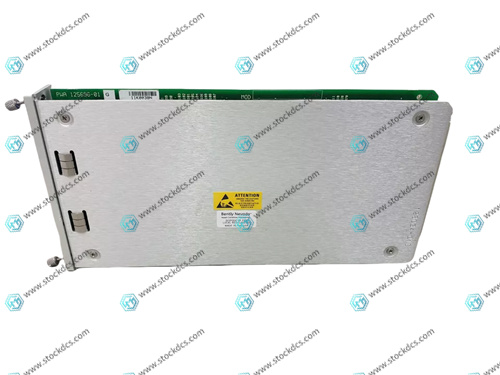

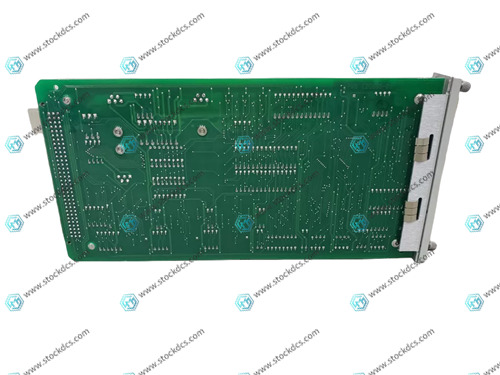

Product imag
