ABB TU846 Terminal Unit

ABB TU846 Terminal Unit

Product Details Introduction

ABB TU846 is a terminal unit used in industrial automation systems, primarily for ABB's distributed control systems (DCS) or PLC systems, responsible for connecting field signals such as sensors and actuators to the control system. TU846 is usually used in conjunction with other control components of ABB to achieve efficient signal processing, transmission, and conversion.

1. Product Overview

manufacturer: ABB

Product model: TU846

Equipment type: Terminal unit

Application areas: Industrial automation, process control, distributed control systems (DCS)

Function: Signal acquisition, signal conversion and transmission

2. Main technical parameters

Parameter specifications

Input voltage 24V DC

Working temperature -20 ° C to+60 ° C

Storage temperature -40 ° C to+85 ° C

Signal interface digital and analog input/output (DI/DO, AI/AO)

Communication protocols such as HART, Modbus, Profibus, etc

Size adaptation to different systems, usually standard module size

Installation method: DIN rail installation

3. Main functions

✅  Signal acquisition and transmission

The TU846 terminal unit can be connected to on-site sensors, actuators, and other devices to collect analog or digital signals, and convert these signals into data formats that can be processed by the control system.

It is responsible for signal preprocessing, ensuring that the signal can be transmitted accurately and without error to the backend control system.

✅  protocol compatibility

TU846 supports communication protocols such as Modbus, HART, Profibus, etc., and is compatible with various PLC, DCS, SCADA systems. It is widely used in industrial automation control and remote monitoring systems.

✅  Flexible I/O configuration

Provide multiple digital and analog input/output interfaces, which can be flexibly configured according to on-site needs to adapt to different equipment and system requirements.

Compatible with multiple sensors and actuators, including pressure sensors, temperature sensors, current sensors, etc.

✅  High reliability and anti-interference capability

Industrial grade design with strong anti-interference ability, able to adapt to harsh environments such as high temperature, humidity, vibration, etc.

Overload protection, short circuit protection, and high reliability components ensure long-term stable operation of the system.

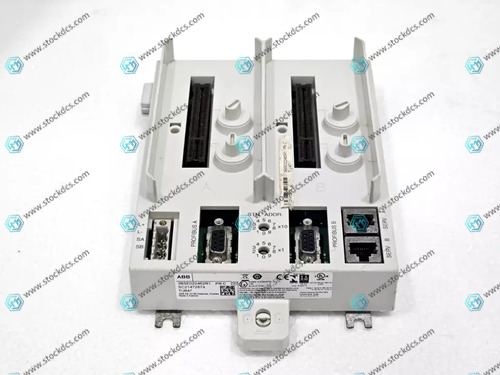

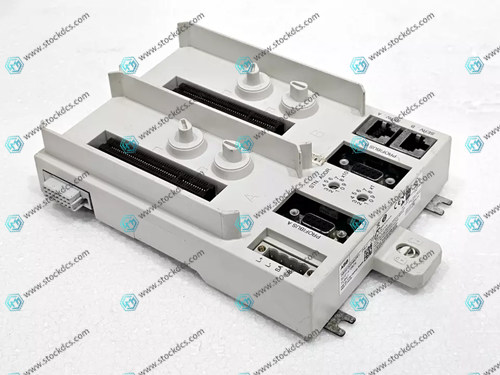

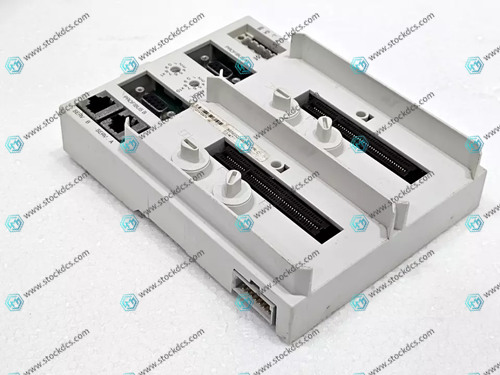

Product imag
