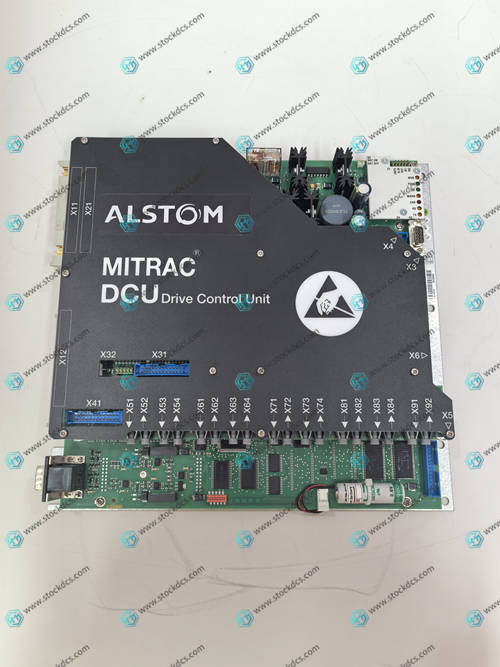

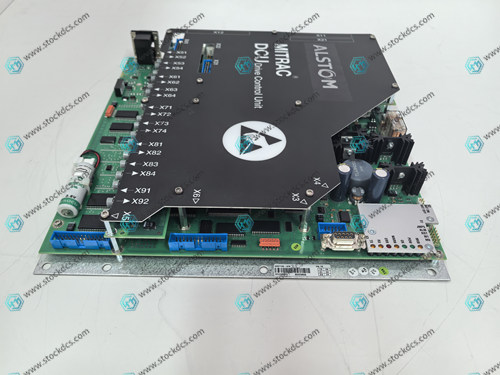

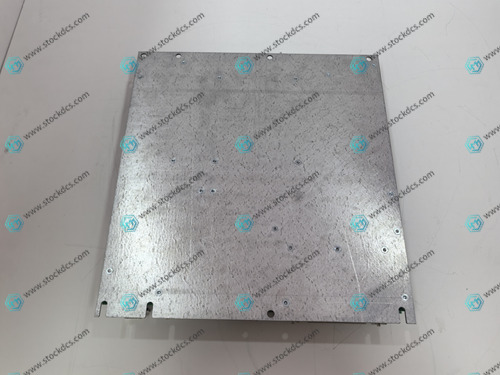

ALSTOM 3EST125-975 DCC2382A Control Panel

ALSTOM 3EST125-975 DCC2382A Control Panel

Product Details Introduction

ALSTOM 3EST125-975 DCC2382A is a transmission interface module designed to meet high-performance requirements in industrial automation and process control systems. This module has the following main technical parameters:

Electrical parameters:

Rated voltage: 690V three-phase AC, suitable for industrial medium voltage distribution systems.

Rated current: 200A, capable of carrying high current loads, ensuring stable operation of equipment at rated power.

Rated power: 150kW, meeting the continuous and stable power supply needs of medium-sized industrial equipment.

Frequency: 50Hz, in line with the standard industrial power frequency of most countries and regions.

Power factor: 0.9 (lag), high power factor helps reduce reactive power loss and improve the utilization efficiency of the power system.

Mechanical parameters:

Size: The compact design measures 800mm in length, 600mm in width, and 1000mm in height, making it easy to install and arrange in various industrial environments.

Weight: 200kg, balanced design of structural strength and performance, convenient for transportation and installation.

Protection level: IP65， Having good dust and water resistance, ensuring reliable operation in harsh industrial environments.

Performance parameters:

Efficiency: 95%, high energy conversion efficiency reduces energy waste and operating costs.

Overload capacity: It can operate continuously for 30 minutes at 1.5 times the rated load, enhancing the equipment's ability to handle sudden or short-term overloads and ensuring production continuity.

Response time: ≤ 50ms, fast response is crucial for real-time control and protection functions, enabling timely response to system changes or failures.

This module is suitable for industrial automation fields that require high reliability and performance, such as power, oil and gas, chemical, pharmaceutical, water treatment, and other industries. Its design ensures stable performance and long service life in various harsh environments.

Product imag
