CONTACT RATING AG1-SDT1-24U-DEN-A55 Ground Fault Sensor

CONTACT RATING AG1-SDT1-24U-DEN-A55 Ground Fault Sensor

Product Details Introduction

AG1-SDT1-24U-DEN-A55 is a ground fault sensor produced by NK Technologies, designed to detect ground faults in electrical systems and protect the safety of equipment and personnel.

Main features:

Function: Real time monitoring of grounding faults in electrical systems to ensure the safety and reliability of the system.

Voltage specification: Suitable for voltage environments of 24V AC/DC.

Output type: Provides single pole double throw (SPDT) relay output for easy integration with other devices.

Rated current and voltage: The rated current is 1 A at 120 VAC and 2 A at 30 VDC.

Noise immunity: It has noise immunity function and is suitable for environments sensitive to electromagnetic interference (EMI) and radio frequency interference (RFI).

Delay time: with an additional delay time of 150 milliseconds.

Reset method: Automatic reset is used, with a set point of 55 mA.

Application areas:

Industrial automation: used to detect grounding faults in electrical systems and protect equipment and personnel safety.

Power system: Used for monitoring and protection in the power system to ensure stable operation of the system.

Medical equipment: Used in medical devices to ensure electrical safety and prevent malfunctions from affecting patients and equipment.

Process control: used for real-time detection of various physical quantities (such as pressure, temperature, flow rate, etc.), and converting them into usable electrical signals for parameter measurement, fault diagnosis, process control, safety protection, and energy-saving optimization in industrial production.

In summary, AG1-SDT1-24U-DEN-A55 is a multifunctional ground fault sensor widely used in industrial automation, power systems, medical equipment, and other fields, with high reliability and noise immunity.

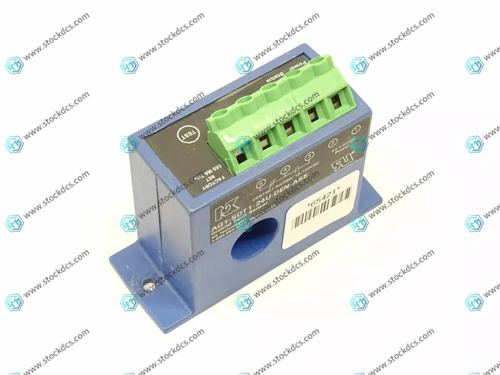

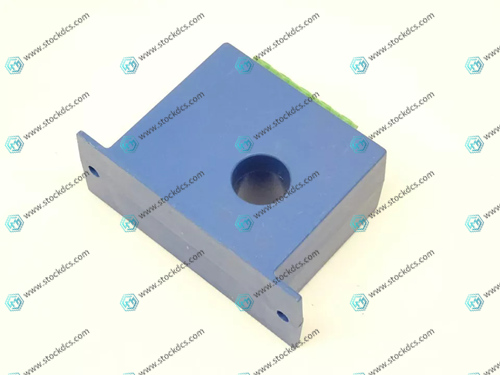

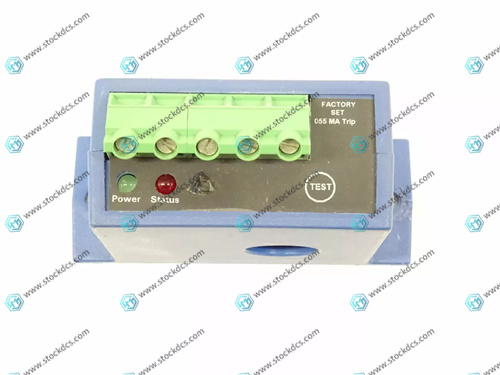

Product imag
