HORNER ELECTRIC HE693STP110K Step Index Module

HORNER ELECTRIC HE693STP110K Step Index Module

Product Details Introduction

HORNER ELECTRIC HE693STP110K is a Stepper Indexer Module designed specifically for GE Fanuc Series 90-30 PLCs, providing precise stepper motor control functionality. This module can generate pulse signals to control the position, speed, and acceleration of stepper motors, and is widely used in fields such as industrial automation, robotics, and CNC equipment.

HE693STP110K Main Features

Support stepper motor control

Generate pulses and directional signals to directly drive the stepper motor.

High precision positioning

Adopting high-speed pulse output to ensure precise motion control.

Programmable parameters

Configure pulse frequency, acceleration, deceleration, target position, etc. through PLC program.

Multiple step modes

Support single step, half step, and micro step modes to improve motion stability.

I/O port support

Provide input ports for connecting limit switches, origin sensors, and other devices to improve safety.

Seamless integration with GE Fanuc 90-30 PLC

Directly inserted into the PLC rack for convenient communication and data processing.

Industrial grade reliability

Suitable for harsh environments, ensuring long-term stable operation.

application area

CNC machine tool: The stepper motor precisely controls the movement of the tool or worktable.

Automated production line: precise positioning of control conveyor belts and picking and placing robotic arms.

Robot: a step driven mechanical arm or mobile unit.

Packaging equipment: Packaging positioning control for industries such as food and pharmaceuticals.

Printing and textile industries: equipment that requires precise displacement control.

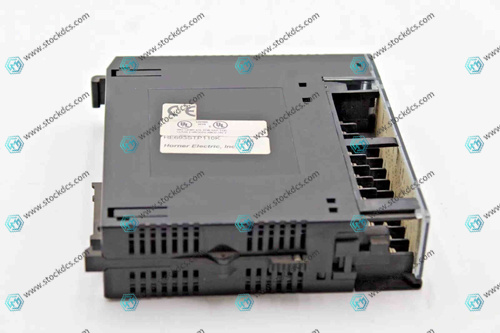

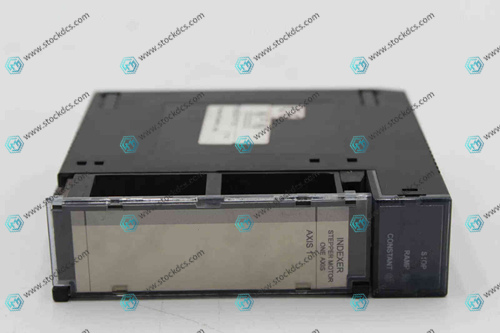

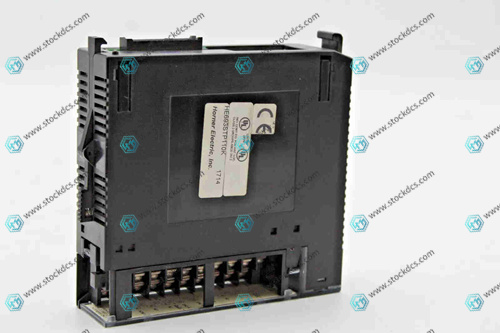

Product imag
