HORNER ELECTRIC HE693STP101E Stepper Index Module

HORNER ELECTRIC HE693STP101E Stepper Index Module

Product Details Introduction

HORNER ELECTRIC HE693STP101E is a Stepper Indexer Module used in GE Fanuc 90-30 PLC, primarily for controlling stepper motors to achieve precise position, speed, and direction control. The following is the detailed information of the module:

Main features:

compatibility

Suitable for GE Fanuc 90-30 PLC, as an independent stepper motor control unit, directly inserted into the PLC rack.

Stepper Motor Control

Control the stepper motor through pulse signals and direction signals.

Supports single axis stepper motor control, suitable for high-precision motion control applications.

pulse output

Maximum pulse rate: 10 kHz (suitable for high-speed stepper motor applications).

Adjustable pulse frequency to meet different motion requirements.

control model

Point to point position control: precise positioning can be achieved by setting the number of steps through PLC program.

Continuous speed control: allows for dynamic adjustment of speed within a set range.

Direction control: Supports forward and reverse switching, can be used for bidirectional motion applications.

Input/output function

Input port: used to receive external inputs such as limit switches and emergency stop signals.

Output port: Used to drive stepper motors, supporting standard TTL level signals.

Condition monitoring

Equipped with LED indicator lights, displaying working status and fault information for easy diagnosis and maintenance.

Installation and Configuration

Insert directly into the GE Fanuc 90-30 PLC rack without the need for additional communication modules.

Set parameters and write programs through Logicmaster 90 or Proficy Machine Edition.

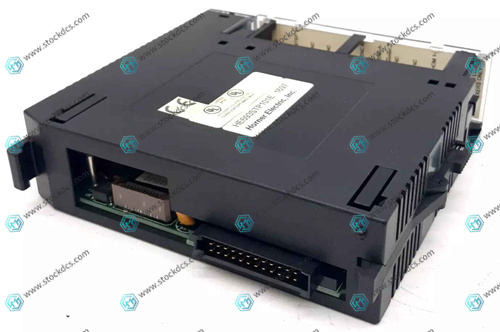

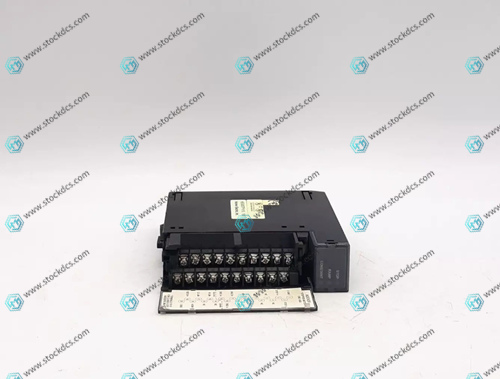

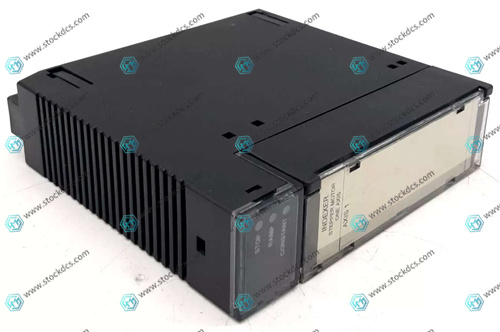

Product imag
