HORNER ELECTRIC HE693RTD600R Input Module

HORNER ELECTRIC HE693RTD600R Input Module

Product Details Introduction

HORNER ELECTRIC HE693RTD600R is an RTD (Resistance Temperature Detection) input module used in the GE Fanuc 90-30 PLC series to achieve high-precision temperature signal acquisition. It supports multiple RTD sensors and can be used for temperature monitoring in industrial automation process control.

Main features:

compatibility

Suitable for GE Fanuc 90-30 PLC as a temperature input module, directly inserted into the PLC rack.

Compatible with Horner Electric automation systems, widely used for temperature measurement and control.

Channel

6 RTD sensor input channels, supporting simultaneous measurement by multiple sensors.

Supported RTD types

100 Ω Platinum RTD (Pt100)

120 Ω Nickel RTD (Ni120)

10 Ω Copper RTD (Cu10)

measuring range

Pt100: -200°C ~ 850°C

Ni120: -80°C ~ 260°C

Cu10: -100°C ~ 260°C

Accuracy and Resolution

Resolution: 0.1 ° C

Accuracy: ± 0.1% of full scale

Signal Processing

Automatic cold end compensation improves measurement accuracy.

Anti interference design to reduce the impact of electromagnetic noise in industrial environments.

Communication and Data Processing

The collected temperature data can be directly accessed through the PLC logic program.

Support analog data conversion for temperature control and monitoring applications.

LED indicator light

Display input status and fault alarms for easy maintenance and troubleshooting.

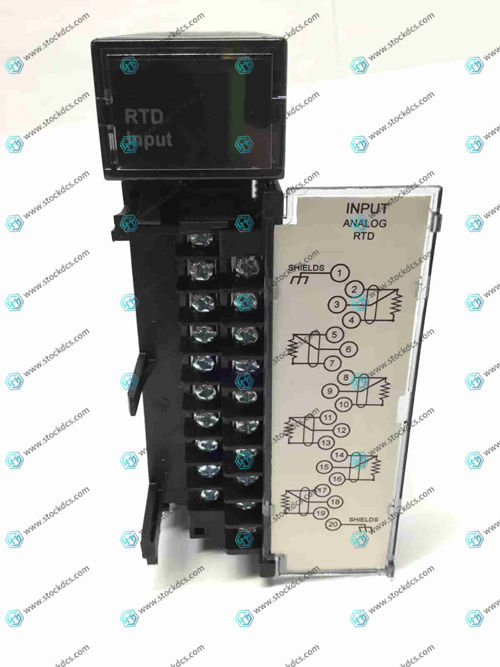

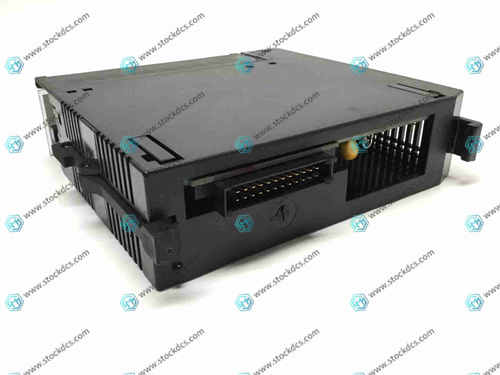

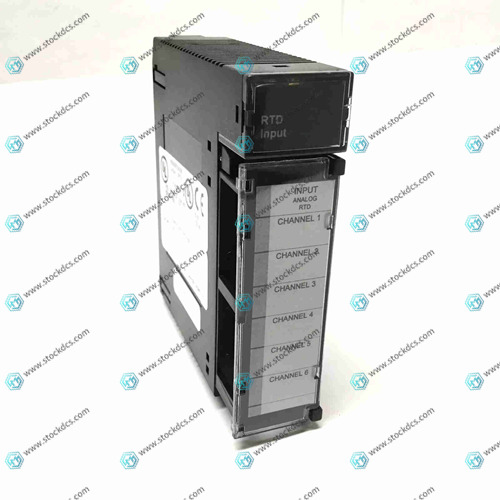

Product imag
