HORNER ELECTRIC HE693THM884 Thermocouple Input Module

HORNER ELECTRIC HE693THM884 Thermocouple Input Module

Product Details Introduction

HORNER ELECTRIC HE693THM884 is a thermocouple input module designed for the GE Fanuc 90-30 PLC series, which can be used to receive and process temperature signals from thermocouple sensors. This module can accurately measure the temperature of various types of thermocouples and process and control the data through a PLC system. It is widely used in temperature monitoring and process control in industrial automation systems.

Main features:

compatibility

Specially designed for the GE Fanuc 90-30 PLC series, it can be directly inserted into the PLC rack to ensure good compatibility with other automation equipment.

Suitable for Horner Electric automation systems for real-time temperature monitoring and control.

Channel

Provide 8 independent thermocouple input channels, capable of processing multiple thermocouple signals simultaneously.

Supported thermocouple types

Supports multiple types of thermocouples, including:

K-type (chromium nickel aluminum nickel thermocouple)

J-type (iron copper alloy thermocouple)

T-type (copper copper nickel thermocouple)

E-type (copper alloy thermocouple)

R-type (platinum platinum/rhodium thermocouple)

S-type (platinum platinum/rhodium thermocouple)

B-type (platinum rhodium thermocouple)

N-type (nickel chromium nickel aluminum thermocouple), etc

Temperature measurement range

K-type:- 270 ° C to+1372 ° C

J-type:- 210 ° C to+1200 ° C

T-shaped:- 200 ° C to+400 ° C

Type E:- 200 ° C to+900 ° C

R/S type: 0 ° C to+1768 ° C

Type B:+ 400 ° C to+1820 ° C

N-type:- 200 ° C to+1300 ° C

The measurement range of various thermocouples varies depending on the type of sensor.

Cold Junction Compensation

The automatic cold end compensation function ensures that external temperature changes do not affect the accuracy of thermocouple measurements, ensuring the reliability of temperature data.

Accuracy and Resolution

Accuracy: ± 0.25%

Resolution: 0.1 ° C or higher, depending on the thermocouple type and measurement range.

Communication and Data Transmission

Provide digital output, temperature data can be obtained through PLC program, and real-time monitoring and control can be carried out.

LED status indication

The module is equipped with LED indicator lights, which are used to display the working status, signal input, and fault warnings of the module, facilitating operation and maintenance.

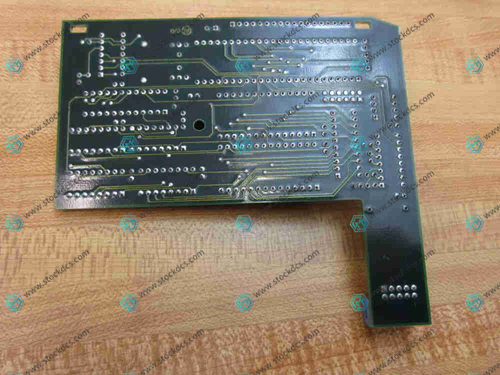

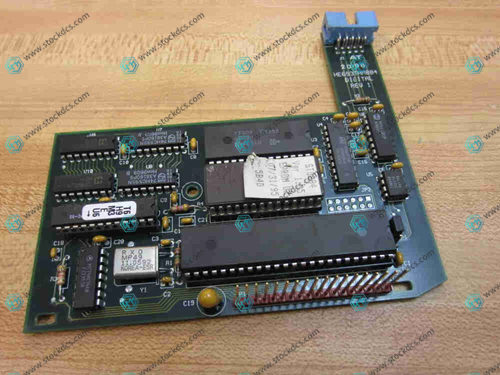

Product imag
