Product Details Introduction

FPX86-9377-A is an industrial grade power capacitor mainly used for filtering, reactive power compensation, and energy storage in power electronic systems. The following is a detailed technical analysis:

1. Basic product information

Model identification: FPX86-9377--A

Type: Power electronic capacitor (presumably DC support/filtering capacitor)

Typical applications:

DC bus filtering of frequency converter

Inverter/Converter System

Power Factor Correction (PFC) for Industrial Power Sources

2. Core Features

✅  High power density design:

Adopting metalized thin film or electrolytic technology (specific confirmation required)

Compact structure, saving installation space

✅  High voltage/high current resistance:

Typical voltage level: 400VDC-1200VDC (specific specifications need to be verified)

Low ESR (Equivalent Series Resistance) Design

✅  Long lifespan:

Expected lifespan:>100000 hours @ rated conditions

Temperature range:- 25 ° C to+70 ° C (some models reach+85 ° C)

3. Typical application scenarios

(1) Industrial frequency converter

DC link circuit for ACS880/ACS800 and other frequency converters

Suppress DC bus voltage ripple

(2) New energy system

DC side energy storage of photovoltaic inverters

Intermediate circuit capacitor of wind power converter

(3) Power electronic equipment

Energy storage unit of UPS uninterruptible power supply

PFC circuit for industrial power supply

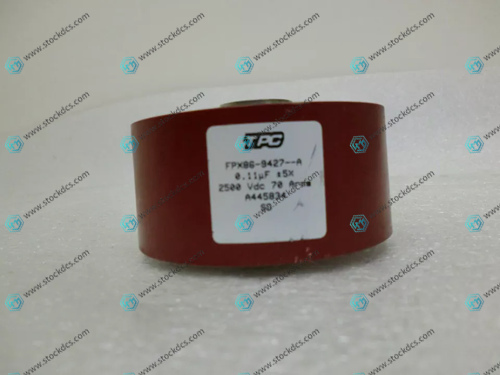

Product imag
