22DILE auxiliary contactor

22DILE auxiliary contactor

Product Details Introduction

22DILE is an auxiliary contactor produced by Eaton, mainly used for signal transmission and circuit switching in electrical control systems. It is usually used in conjunction with the main contactor or relay to achieve remote control, logic control, and status indication.

main features

Auxiliary control: used to control auxiliary circuits outside the main circuit, such as indicator lights, solenoid valves, etc.

High reliability: The contact parts are made of wear-resistant materials to ensure long service life and stable operation.

Modular design: Compatible with Eaton's DIL series contactors for easy expansion.

Compact structure: suitable for installation in narrow spaces, supports DIN rail installation.

technical specifications

Rated voltage: 24V, 110V, 230V AC/DC (depending on the model).

Contact configuration: 2 normally open (NO)+2 normally closed (NC).

Rated current: generally 10A, suitable for low-power control circuits.

Installation method: DIN rail or screw installation.

application area

Industrial automation: Used for auxiliary circuit control of PLC and relay control systems.

Power system: used for switching status signals in electrical cabinets and distribution systems.

Mechanical equipment: controls start/stop signals and assists in the operation of the main contactor.

The 22DILE auxiliary contactor has a compact structure and stable performance, and is a common component in industrial and commercial electronic control systems.

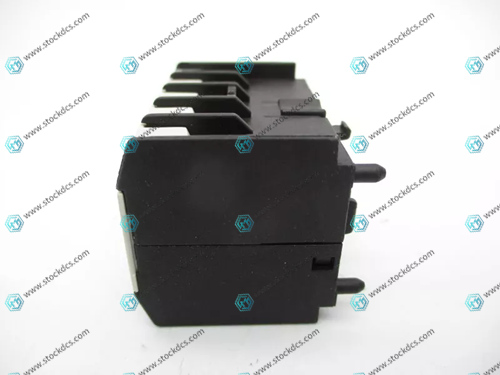

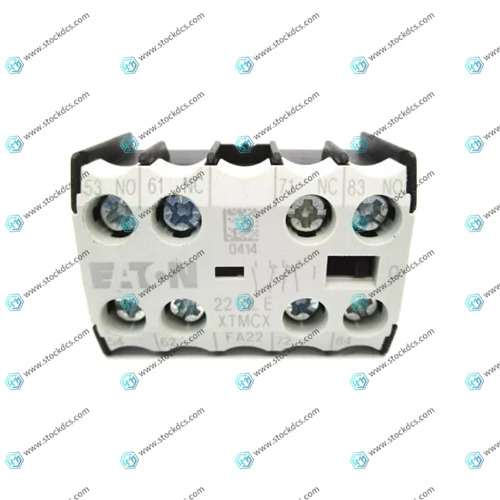

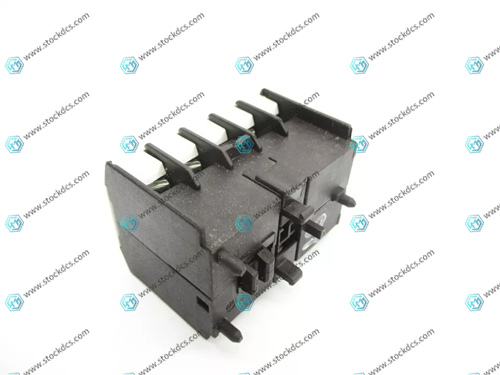

Product imag
