ALCATEL LUCENT 3DH03231AAAA RF Receiver

ALCATEL LUCENT 3DH03231AAAA RF Receiver

Product Details Introduction

The ALCATEL LUCENT 3DH03231AAAA RF receiver is a professional RF receiving module used in mobile communication base stations or RF subsystems. It belongs to the Alcatel Lucent communication product line and is mainly used for RF signal reception, conversion, and front-end processing in wireless systems such as 2G/3G/4G/LTE.

1、 Product Overview

Project Description

Product model 3DH03231AAAA

Product Name: RF Receiver Module

Manufacturer Alcatel Lucent (now part of Nokia)

Module type: Radio frequency receiver module/RF module

Application scenarios include mobile communication base stations, wireless access units (RAUs), RRUs, etc

2、 Main functions

RF signal reception

Receive downlink radio frequency signals (RF) from antennas or RRH, and perform preliminary amplification and filtering processing.

frequency conversion

Downconvert high-frequency RF signals to intermediate frequency (IF) or baseband signals for use by the subsequent digital processing unit.

Gain Control (AGC)

Built in automatic gain control function ensures stable reception and analysis of signals of different strengths.

Noise filtering and anti-interference

Capable of highly selective filtering, effectively filtering out adjacent channel interference and out of band noise.

Signal Monitoring and Diagnosis

Support module level monitoring: input parameters such as power, voltage, current, temperature status, etc.

3、 Typical technical parameters (reference to similar models)

Project parameters

Frequency range 700 MHz~2700 MHz (depending on system configuration)

Bandwidth 5/10/20 MHz

Input interface RF coaxial connector (such as SMA/N-type) or onboard connector

Output Type: Intermediate Frequency IF/Digital IQ (depending on system configuration)

Power input+12V/+24V DC (provided by the main equipment)

Working temperature -40 ℃~+65 ℃

Passive cooling or chassis air cooling system assisted cooling method

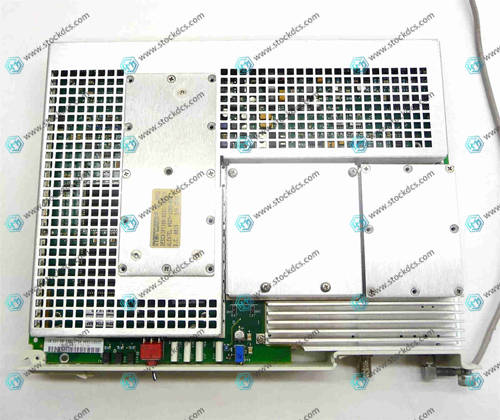

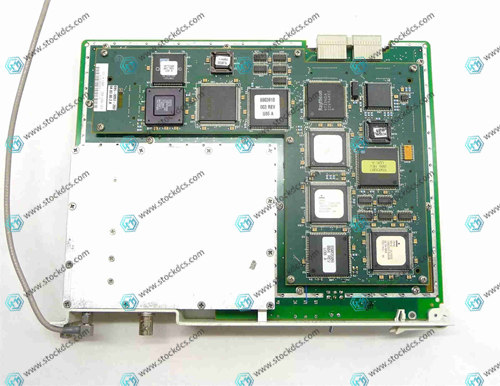

Product imag
