ALCATEL-LUCENT SNPQAVCAAC Channel Unit Module

ALCATEL-LUCENT SNPQAVCAAC Channel Unit Module

Product Details Introduction

1. Product Overview

model: SNPQAVCAAC

Type: Digital Channel Processing Unit

Application: Mainly used for Alcatel Lucent (Nokia) SDH/OTN optical transmission equipment, providing business access and channelization processing capabilities

2. Core functions

Multi service access:

Supports STM-1/STM-4/STM-16 optical interfaces

Provide channelization processing for E1/T1 electrical interfaces

Supports Ethernet over SDH (EoS) functionality

Signal processing:

Complete the mapping/demapping from PDH to SDH

Support virtual container processing at all levels of VC-12/VC-3/VC-4

Provide pointer adjustment and cost handling

Protection features:

Support 1+1 channel protection

Equipped with Automatic Protection Switching (APS) function

Meet the 50ms switching time requirement

3. Technical parameters

Parameter category specification description

Interface type SFP optical port (optional 1310nm/1550nm)

The maximum business capacity supports 63 × E1 or 16 × E3 services

The jitter performance meets the G.823/G.825 standard

Typical power consumption is 25W, maximum value is 35W

Working temperature -5 ° C~+55 ° C

4. Typical applications

Traditional TDM network:

Used for transmission of Abis interface in 2G/3G base stations

Provide enterprise dedicated line E1 service access

Hybrid networking:

Smooth transition from TDM services to packet networks

Support CES (Circuit Simulation) business

Network transformation:

Expand Ethernet service capabilities on existing SDH equipment

Multi service aggregation for network edge

5. System compatibility

Equipment platform:

1665 Data Multiplexer (DMX)

1675 LambdaUnite MSS

1850 Transport Service Switch (TSS)

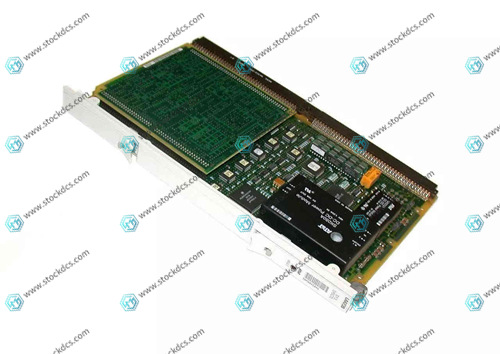

Product imag
