ALCATEL-LUCENT 3DH03169ARAB Controller Module Board

ALCATEL-LUCENT 3DH03169ARAB Controller Module Board

Product Details Introduction

ALCATEL-LUCENT 3DH03169ARAB Controller Module Board Technical Specifications

1. Product Overview

Model: 3DH03169ARAB

Type: Main Control Engine/System Controller

Purpose: Used for Alcatel Lucent (Nokia) high-end routing/switching equipment, responsible for system management, protocol processing, and device control.

2. Core functions and features

(1) High performance processing capability

Multi core architecture:

Control plane: x86 CPU (used for routing protocol computation and management functions)

Data plane: Dedicated Network Processor (NPU) for high-speed forwarding

Large capacity memory:

16GB DDR4 (control plane)+32GB (data plane cache)

Storage Expansion:

128GB SSD (for system logging, configuration backup)

(2) System level control function

Routing protocol processing:

Support BGP/OSPF/IS-IS (IPv4&IPv6)

MPLS（LDP/RSVP-TE/SR/SRv6）

Equipment management:

Manage through CLI/SNMP/NETCONF

Support Zero Touch provisioning (ZTP)

(3) High reliability design

Redundant hot backup: supports 1+1 primary backup mode (switching time<200ms)

Fault isolation: Separation of control plane and forwarding plane

Health monitoring: Real time monitoring of CPU/memory/temperature status

(4) Software Defined Networking (SDN) support

Supports OpenFlow 1.3+

Can interface with Nokia Nuage Networks SDN controller

3. Hardware specifications

Parameter specification description

Power consumption of 80W (typical value), maximum 120W

Cooling method: forced air cooling (with intelligent speed regulating fan)

Working temperature: 0 ° C~45 ° C (commercial grade)

Storage temperature -40 ° C~70 ° C

Humidity range 5%~95% (non condensing)

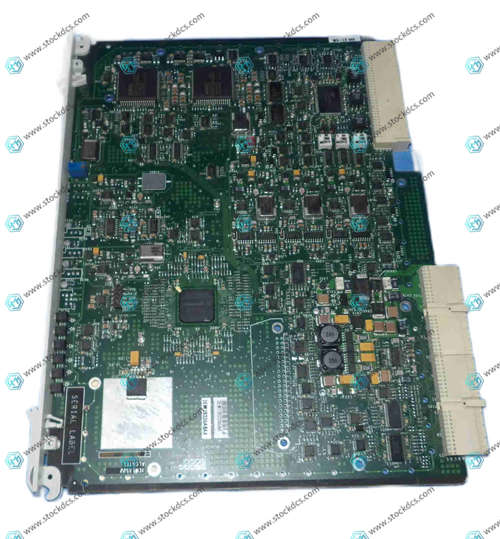

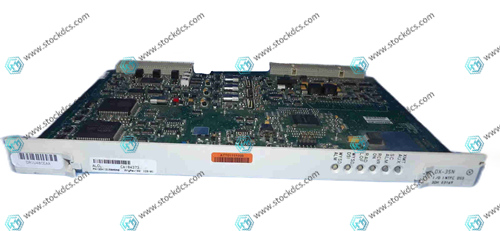

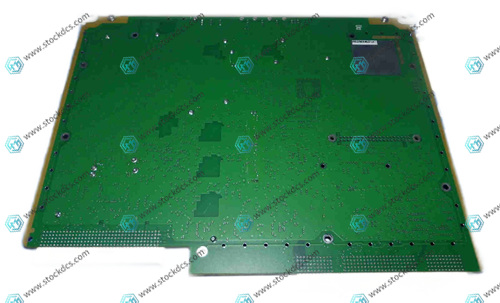

Product imag
