ALCATEL LUCENT 3AL788568BDAD Communication Module

ALCATEL LUCENT 3AL788568BDAD Communication Module

Product Details Introduction

ALCATEL-LUCENT 3AL788568BDAD Communication Module - Technical Specifications and Application Guide

1. Product positioning

3AL788568BDAD is a high-performance multi service communication module launched by Nokia (formerly Alcatel Lucent), designed specifically for the new generation of converged networks, mainly used for:

Data plane acceleration for telecom grade equipment

Multi protocol business processing

High density interface aggregation

2. Core specification parameters

Category Technical Indicators

Physical Characteristics - Dimensions: 290 × 220 × 35mm (compliant with ATCA standards)

-Weight: 1.8kg

Processing capability - equipped with FP5 network processor (16 cores @ 2.8GHz)

-Packet processing capability: 400Gbps line speed forwarding

Interface configuration -16 × 25G SFP28 or 4 × 100G QSFP28 (can be mixed)

-1 × 10G RJ45 management port

The protocol supports Ethernet/IPv6/MPLS/SRV6/VXLAN/Geneve

Environmental specifications - Operating temperature:- 5°C ~ +55°C

-Relative humidity: 5%~95% (non condensing)

3. Hardware architecture highlights

3.1 Processing System

Intelligent traffic scheduling:

Based on P4 programmable pipeline

Hardware level micro burst absorption (<10 μ s buffer)

Security acceleration:

Built in IPsec encryption engine (supporting SM4 encryption)

Line speed MACsec processing

3.2 Reliability Design

Double star power input (-48V DC+12V backup)

Key chip temperature monitoring (± 1 ℃ accuracy)

Forward Error Correction (FEC) mechanism

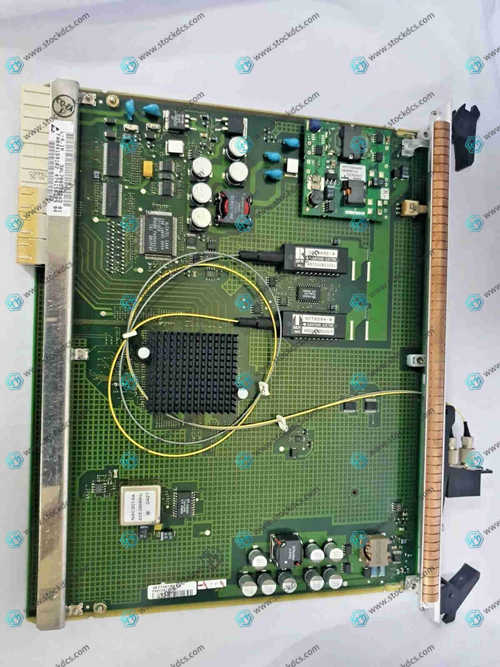

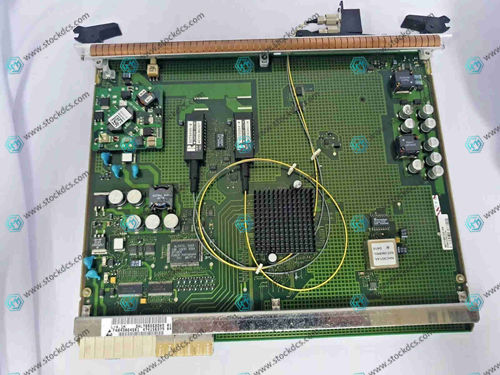

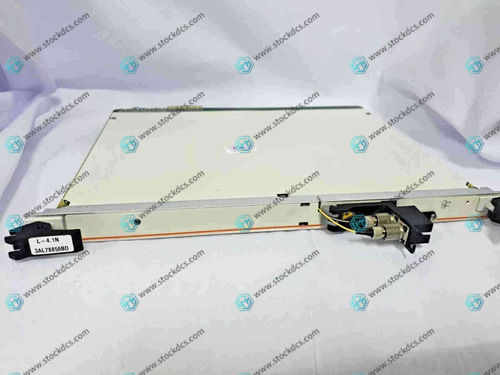

Product imag
