ALCATEL LUCENT 3EU23006ACBC Printed Circuit Board

ALCATEL LUCENT 3EU23006ACBC Printed Circuit Board

Product Details Introduction

ALCATEL-LUCENT 3EU23006ACBC is a printed circuit board (PCB) used in communication system equipment, and is one of the communication platform specific modules of Alcatel Lucent. This circuit board has highly integrated signal processing and interface logic in its structure, serving various switching, access, or transmission functions in telecommunications networks.

1、 Overview of Basic Information

Project Content

Product model 3EU23006ACBC

Product type: Printed circuit board/functional daughter board

Manufacturer Alcatel Lucent (now Nokia Network Business)

Installation method plug-in, deployed in the main framework of the communication system

Use functional module circuit boards in positioning access, transmission, and control systems

2、 Core function (speculated)

Due to the fact that these PCBs are mostly customized products for specific platforms, 3EU23006ACBC may have one or a combination of the following functions:

Function Type Function Description

The signal processing circuit board is used for tasks such as physical layer signal conditioning, digital/analog signal conversion, interface driving, etc

The control logic branch board assists the main control module in signal processing or control logic distribution for specific channels

The data path board/interface patch panel provides physical connections, joint integration, and channel relay for multiple signal cables or optical fibers

The power auxiliary and distribution board is used for the distribution, filtering, and management of low-voltage power supplies, ensuring the stability of power supply for the motherboard/interface board

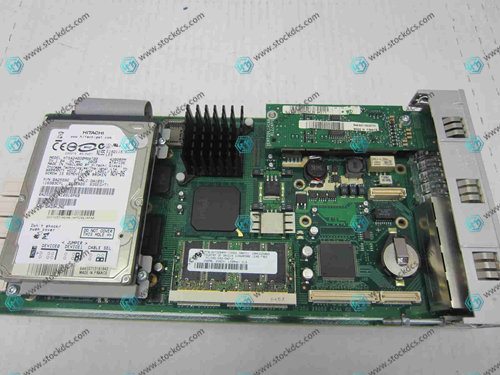

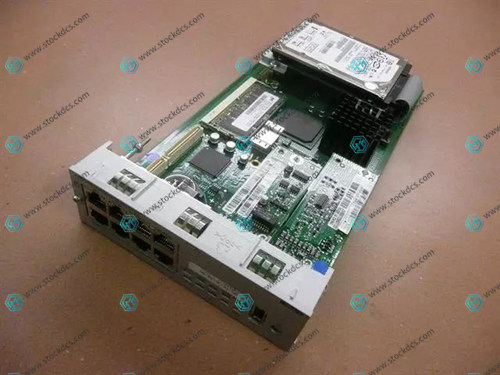

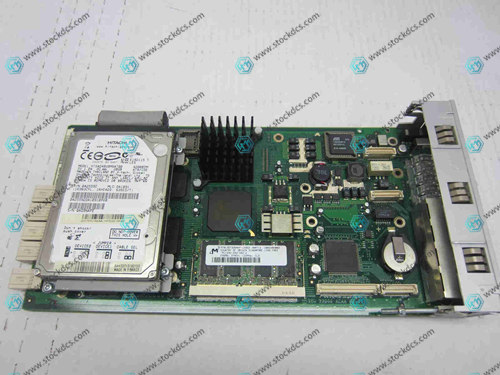

Product imag
