ALCATEL LUCENT 3FE61233BA Terminal Card Board

ALCATEL LUCENT 3FE61233BA Terminal Card Board

Product Details Introduction

The ALCATEL-LUCENT 3FE61233BA terminal card is a critical hardware module in the Alcatel Lucent (now Nokia) communication system, mainly used for processing and transmitting end-user data in access devices. It belongs to the access layer board card and is widely used in multi service access platforms (such as ISAM series) to provide efficient and stable network connections for user terminals.

1、 Product Overview

Project Description

Product model 3FE61233BA

Product Name: Terminal Card/Access Card

Brand manufacturer Alcatel Lucent (Nokia)

System ISAM access platform, OLT equipment, DSLAM system, etc

The main function is to achieve user side data access and processing, as well as data interaction with upper layer devices

2、 Functional Features

Function module description

Multi user access processing supports the access of multiple terminal devices, such as home users and enterprise terminals

Protocol conversion supports the implementation of physical signal conversion and the encapsulation and decapsulation of data protocols

Data forwarding and aggregation centralize, package, and forward end-user data to the upper control board or network side

Signaling and control functions communicate with system control modules for authentication, configuration issuance, link monitoring, etc

The alarm and status indicator board has fault detection and operation status feedback functions, which facilitate system monitoring and maintenance

3、 Application Fields

Application scenario description

Broadband Access Network (FTTx) is used for fiber optic access terminals to connect ONT/ONU devices at the user end

Provide data processing and transmission for DSL users in DSLAM systems

Multi Service Access Platform (MSAP) supports the integration of multiple services such as voice, data, and video

The enterprise park network provides a stable data access channel for enterprise terminals

Smart communities/residential broadband access to a large number of residential user terminals, achieving centralized management

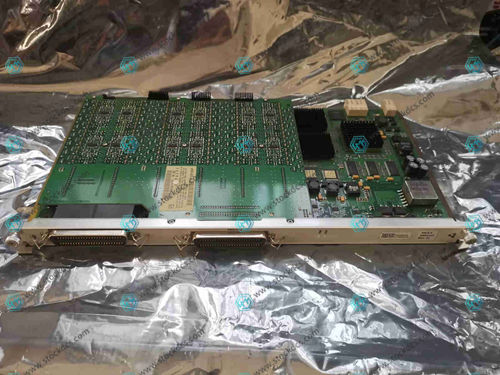

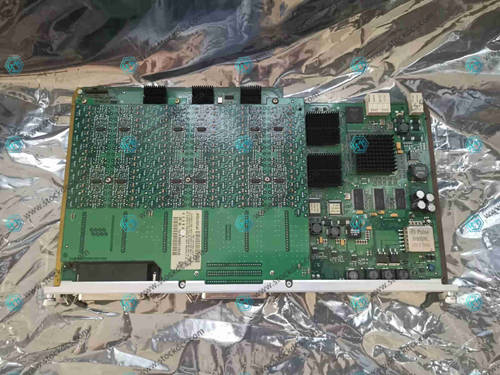

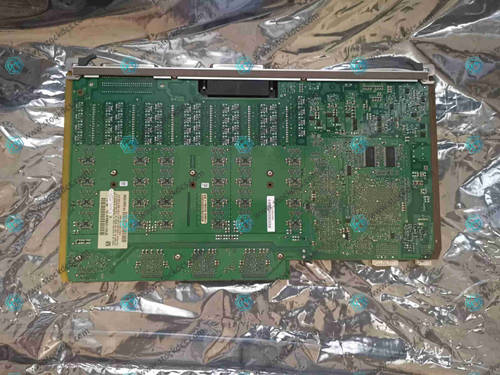

Product imag
