193X277ACG01 detector module

193X277ACG01 detector module

Product Details Introduction

The GE 193X277ACG01 Detector Module is a critical signal processing component in the GE 193X series industrial control systems, primarily responsible for detecting, collecting, and preprocessing input signals from sensors or external signal sources. This module is commonly used in complex automation systems, such as power systems, drive control systems, or process control systems, to achieve high-precision monitoring and feedback.

1、 Basic Product Information

Project Content

Product model 193X277ACG01

Product Name: Detector Module

Manufacturer GE (General Electric)

Series Belonging to 193X Control System Series

Installation method plug-in card, suitable for 193X rack

2、 Main functions

Function module description

Signal detection collects analog/digital input signals from sensors, voltage/current monitoring devices, etc

Signal shaping amplifies, filters, isolates, and threshold signals to output standard control signals

Status judgment is based on detection signals to determine the operating status (such as overload, overvoltage, abnormal temperature)

Alarm triggered: When the signal exceeds the set range, the system alarm or protection mechanism can be triggered

Data feedback will feed back the detection results to the main control system, achieving closed-loop control logic

3、 Technical parameters (typical)

Parameter category description

Input signal types include voltage, current, logic level, analog sensing signal, etc

Multiple input channels (specific quantity depends on product version)

Supply voltage ± 15V DC or+5V DC, depending on system configuration

Fast signal response time (usually less than 1ms), suitable for dynamic monitoring

Bus communication between output interface and central controller, relay contacts or analog signal output

Working temperature -20 ℃~+60 ℃, industrial temperature rating

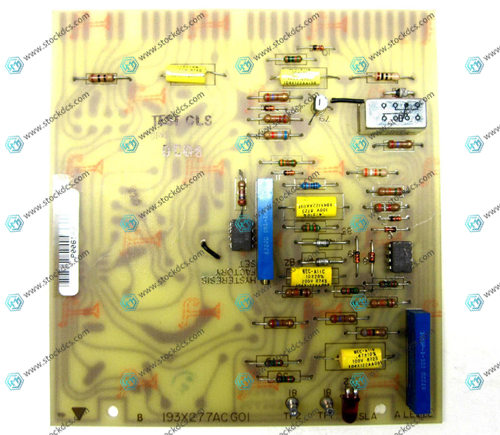

Product imag
