Product model: 193X460ADG02

Product Name: Control Board

manufacturer: General Electric（GE）

Product Series: 193X Control System

Function description:

193X460ADG02 is a multifunctional control board in the GE 193X series control system, used for logic control, signal conditioning, status transmission, etc. It is one of the core components of the entire control system. This module is often used in speed control systems, generator control systems, or other large industrial control platforms.

Main technical parameters (typical configuration):

Input power supply: Powered by the system (commonly ± 15V DC,+5V DC)

Signal type: mixed analog and digital

Output function: Control signal output, status feedback, relay drive

Interface method: plug-in card, compliant with GE 193X system backplane standard

Onboard components: integrated circuits, operational amplifiers, transistors, relays, precision resistors, electrolytic capacitors, etc

Application areas:

GE Mark series turbine control system (such as Mark I, Mark II)

Industrial motor speed control system (especially for large AC/DC motors)

Control rooms for thermal power plants and substations

Metallurgical, chemical, and heavy industry automation platforms

Usage and maintenance suggestions:

Power off when inserting the board to ensure that the interface is clean and free of foreign objects

Regularly check whether the capacitor has bulges or leaks

Use an oscilloscope to check for waveform abnormalities at the output terminal

When encountering logic errors or signal anomalies, it is important to focus on detecting control ICs and transistor components

If the board is damaged, it is recommended to search for prototype spare parts or contact a professional repair organization for refurbishment

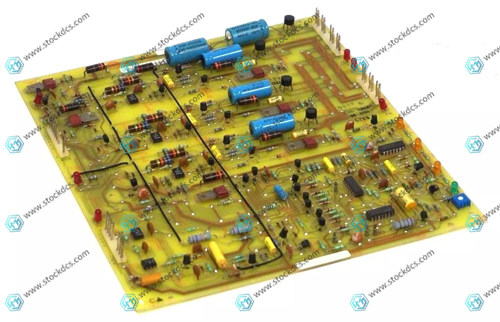

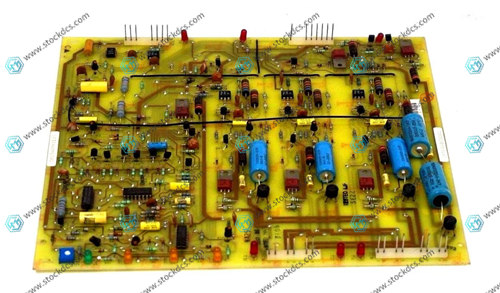

Product imag
